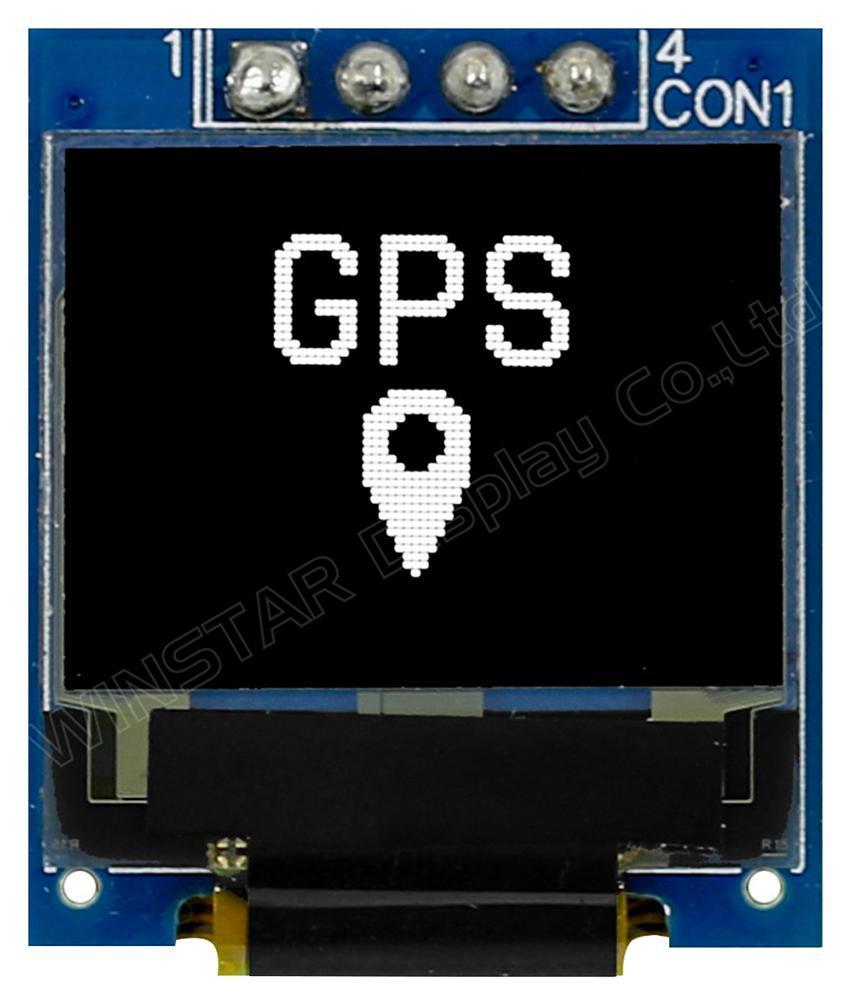

OLED Graphic Display Module, 64 x 48, 3V, Passive Matrix, White - WEA006448AWPP3N00000

OLED Graphic Display Module, 64 x 48, 3V, Passive Matrix, White - WEA006448AWPP3N00000

£9.49 GBP
£9.49 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Features

  • Dot matrix: 64 x 48 Dots
  • Module dimension: 19.9x23.1x2.4mm
  • Active area: 22.53 x 15.01mm
  • Pixel size: 0.185 x 0.185mm
  • Pixel pitch: 0.235 x 0.235mm
  • Display colour: White
  • Display mode: Passive Matrix
  • Drive duty: 1/48 Duty
  • IC: SSD1306

Specifications
Resolution 64 x 48
Display Appearance White on Black
Logic Voltage 3V to 3.3V
Interface Type I2C
Module Size 19.9mm x 23.1mm
Operating Temperature Min -40°C
Operating Temperature Max 80°C
Display Construction COG
Country of Origin: China

EAN:
Manufacturer Part Number:
