6 Way PUSH WIRE® splice connector, 12AWG - 20AWG, 4mm, Grey - 2773-406

6 Way PUSH WIRE® splice connector, 12AWG - 20AWG, 4mm, Grey - 2773-406

£1.89 GBP
£1.89 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

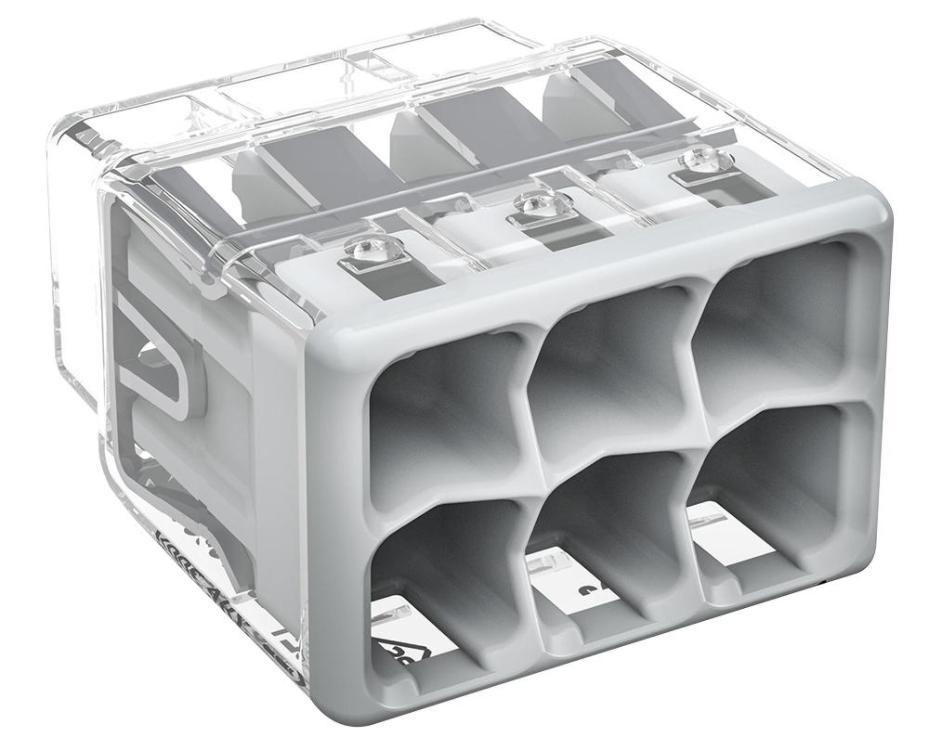

The 2773-406 from WAGO is a 6 Way PUSH WIRE® splice connector.

Features

  • Push-in termination of up to eight solid and stranded conductors
  • Wire size: 0.75mm2 to 4mm2 (Solid) and 1.5mm2 to 4mm2
  • Nominal voltage: 450V
  • Rated current: 32A
  • Dimensions (LxWxH): 18.6x16.4x11.3mm

Specifications
Product Range 2773 Series
No. of Contacts 6Contacts
Connector Type Push In
Connector Mounting Cable Mount
Wire Size AWG Max 12AWG
Wire Size AWG Min 20AWG
Contact Plating Copper Plated Contacts
Contact Material Copper
Country of Origin: Germany

EAN: 4055143927666
Manufacturer Part Number:
