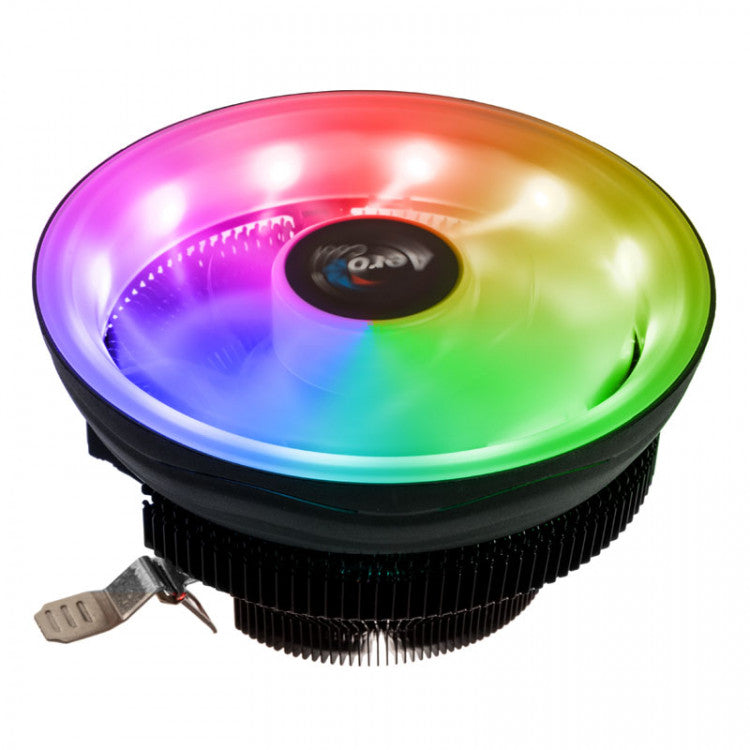

Aerocool Core Plus ARGB LED CPU Cooler - 120mm

The Core Plus is a powerful low-profile CPU cooler from Aerocool with an extremely flat design. The pre-installed 120 mm fan comes with integrated ARGB lighting.

The features of the Aerocool Core Plus low-profile CPU cooler at a glance:
- Low overall height of only 83 mm
- Including 120 mm PWM fan with ARGB lighting
- Suitable for common AMD and Intel processors
- TDP of 110 watts

The features of the Aerocool Core Plus low-profile CPU cooler in detail
The low-profile cooler is ideally suited for mini-ITX and HTPC housings, where flat but powerful coolers are required. Thanks to the large cooling surface, the cooling performance of the 83 millimeter high top blower is also impressive. This effectively removes the waste heat from the processor so that it can develop its full performance.

The pre-installed fan is a quiet, 120 millimeter model with a 4-pin PWM connector and addressable RGB lighting. This generates a maximum of 25.4 dB (A) at a speed between 600 and 1800 revolutions per minute. It can be controlled from the mainboard with the PWM signal. The automatic adjustment regulates the fan depending on the power requirement.

The ARGB lighting is connected via a 3-pin RGB connector and can be controlled using the RGB software on the mainboard or a suitable controller.

Technical details:
- Dimensions (including fan): 136 x 83 x 136 mm (W x H x D)
- Colour: Black
- TDP: 110 W

Fan:
- Number: 1x 120 mm
- Dimensions: 120 x 120 x 25 mm
- Noise level: 14.5 - 25.4 dB (A)
- Speed: 600 - 1800 rpm
- Static pressure: 0.53 - 1.41 mmH2O
- Airflow: 37 - 87.15 m³ / h (21 - 51 cfm)
- Connection: 1x 4-pin PWM
- Rated current: 0.55 A
- Power consumption: 6.6 W
- MTBF: 60,000 hours

Compatibility:
Intel: 775, 115x
AMD: AM4, AM3 +, AM3, AM2 +, AM2, FM2, FM1
