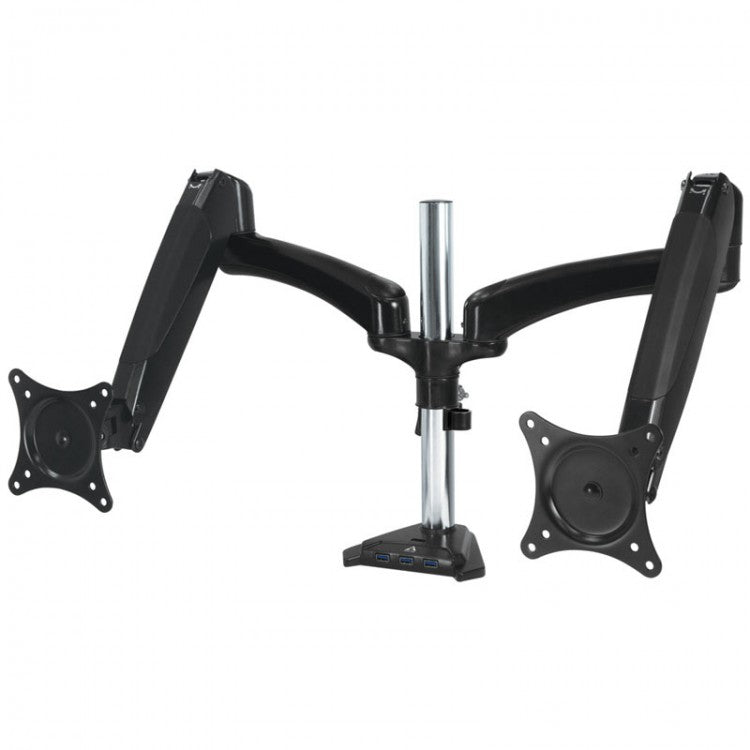

Arctic Dual Monitor Mount Z2-3D (Gen 3) & USB 3.0 Hub 3D-adjustable AEMNT00057A

Black mount for two VESA monitors: height adjustment & tilt

Vertical & horizontal rotation

Including USB 3.0 hub

The manufacturer Arctic (formerly Arctic Cooling) is most known for its very quiet and high-quality CPU and VGA cooler. However, the range of the silent specialist has long been much wider, and so Arctic offers everything from coolers to power supplies to peripherals, which pleases the heart of quality-conscious buyers. The Arctic monitor holder Z2-3D (Gen. 3) belongs to these peripheral products.
The features of the Arctic monitor holder Z2-3D (Gen. 3) at a glance:
3D monitor positioning
USB hub in the base
Practical gas lift arms
Pivot, tilt and swivel
VESA 75 & 100
Up to two 27 "displays
Carries up to 2x 8 kg weight
The Arctic monitor holder Z2-3D (Gen. 3) with USB hub in detail
The assembly system of black powder-coated steel consists of a column, which is fixed by means of a clamping screw on the rear desk edge. On the column two flexible arms are inserted, which can be locked in any height - up to 310 mm.

On the last link of the arms are the mounting plates, which are screwed to the back of the display. Due to the flexible support arms, the distance to the column and thus to the rear edge of the table can be varied between 110 and 580 mm.

In order to adapt the Z2-3D (Gen. 3) monitor holder quickly and easily to the individual ergonomic sitting position, the swivel arm has an integrated gas lift technology. This allows a smooth pulling and pushing away of the monitor.

The Z2-3D (Gen. 3) mount is compatible with monitors up to 27 inches in size, each weight not exceeding 8 kg. Thanks to the well thought-out mounting system, a wide range of adjustment options are available to adapt the workplace to your own needs.

The display is height-adjustable, can be rotated 360 degrees horizontally (swivel function), can also be rotated 180 degrees vertically (pivot function) and tilted up to 90 degrees up or down (tilt function). There is also a USB hub with four USB 3.0 ports at the bottom of the Z2-3D (Gen. 3) mount.

Technical details:
Weight: approx. 4.7 kg
Color: black (dull), silver
Mounting system: VESA
VESA standard: 75 x 75 mm / 100 x 100 mm
Monitor compatibility: 2x up to 27 inches, max. 8 kg
Distance to the support column: 110 to 580 mm
Height adjustment: yes (column height 310 mm)
Vertical rotation (pivot): 180 °
Horizontal rotation (swivel): 360 °
Tilt angle: +/- 90 °
USB hub: 4x USB 3.0
Expansion sets: Z + 1 Pro (Article No .: MO-013-AR), Z + 2 Pro (Article No .: MO-14J-AC)
