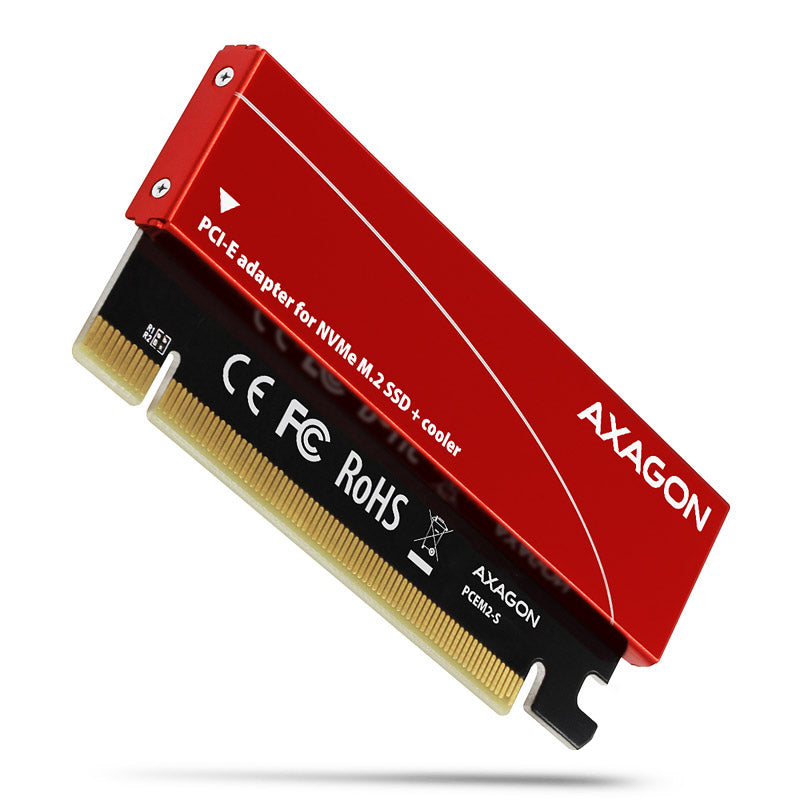

AXAGON PCEM2-S PCIe 3.0 x16 Adapter, 1x M.2 NVMe SSD With Passive Cooling
AXAGON PCEM2-S PCIe 3.0 x16 Adapter, 1x M.2 NVMe SSD With Passive Cooling
Regular price
£15.89 GBP
Regular price
Sale price
£15.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Details
With the PCEM2-N , AXAGON offers an internal adapter that connects an NVMe M.2 SSD to the PC via a PCI Express slot. This is particularly useful if the mainboard does not have a corresponding M.2 slot or if these are already occupied. The adapter enables the use of single and double-sided M.2 SSDs in x16 PCIe 3.0 slots and does not require a bezel.
The PCI Express bus powers the PCEM2-N directly, eliminating the need for an external source. A large-area heat sink made of aluminum helps to better dissipate the waste heat of the M.2 SSDs under load.
Technical details:
- Dimensions: 103 x 8 x 40 mm (W x H x D)
- Input:
Interface: PCI-Express 3.0
Number of lines: 4-lane (x4)
Speed (PCI-Express 3.0): 8 GB/s (bidirectional)
Compatibility:
PCI-Express 1.0a / 1.1 / 2.0 / 2.1 / 3.0
PCIe slot : x16 - Output:
Interface: M.2 NVMe (PCI-Express) Connector
: 75-pin M.2 M-Key or B+M-Key
Compatibility: all M.2 NVMe SSDs (M-Key) - Supported sizes:
2280 / 2260 / 2242 / 2230
Height: single / double-sided M.2 SSDs
Max. hard disk capacity: unlimited - Compatibility:
MS Windows: 10 / 8.1 / 8 / 7 (all 32 and 64 bit versions)
MS Windows Server: 2016 / 2012 / 2008 R2 (all 32 and 64 bit versions)
Linux: Kernel 2.6.31 and higher - Scope of delivery:
1x PCI Express adapter with aluminum housing
3x thermal pads
mounting material and screwdriver
Installation instructions
