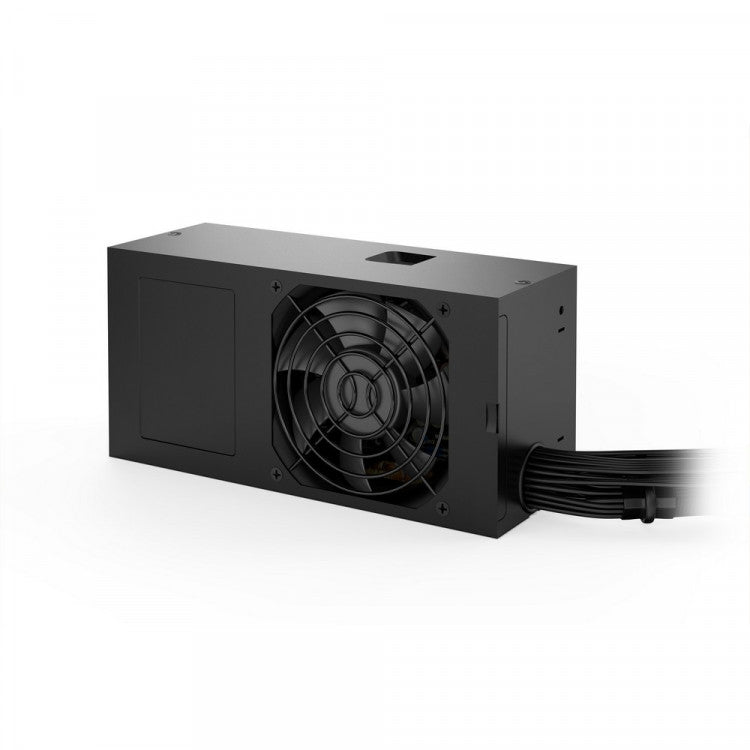

be quiet! TFX 3 300W Gold Power Supply

be quiet! TFX 3 300W Gold Power Supply

£69.49 GBP
£69.49 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Product Features

  • TFX Power 3 300W Gold: the upgraded be quiet! high-efficiency PSU for mini and media PCs with great features at a reasonable price.

    • Product Details

    COMPACT AND SILENT ENERGY

    TFX Power 3 300W Gold, the advanced, high-efficiency be quiet! compact PSU gives you more for your mini or media PC. It supports the latest standards while providing solid voltages and enough power to support a PCIe graphics card. The combination of quiet operation and reliability make the TFX Power 3 300W Gold the perfect choice for PCs with TFX form factor.

    • 80 PLUS® Gold efficiency (up to 91.7%) for lower power consumption
    • Strong dual 12V-rails for high stability and PCIe graphics card support
    • Two 6+2pin PCIe connectors for powerful GPUs
    • 300W of continuous power
    • High-quality temperature-controlled 80mm fan for low-noise operation of max. 21.7dB(A)
    • Sleeved or flat black cables up to 60cm long
    • Meets the latest safety and efficiency requirements
    • Modern safety protections reliably defend against numerous failures
    • Standby draw less than 0.17 watts
    • Three-year manufacturer"s warranty
    • Product conception, design and quality control in Germany

    General data

    Model TFX Power 3 300W Gold
    Continuous power (W) 300
    Peak power (W) 350
    Form factor ATX 12V TFX12V V2.52
    Form factor EPS 12V Version 2.92
    Modular cable management -
    Topology -
    Wire-free design (DC-side) -
    Voltage (Vac) 100 - 240
    Frequency (Hz) 50 - 60
    Input current (A) 4A / 2A
    PFC active
    Power factor at 100% load >0.98
    Compliant to Intel C6/C7 Yes
    Power consumption in standby (W) <0.17
    Average life time (h / 25°C) 100,000
    Operating temperature up to (°C) 40

    Output

    12V rails (multi-rail operation) 2
    12V single rail operation -
    Overclocking key -
    +3.3V (A) 18
    +5V (A) 18
    +12V1 (A) 13
    +12V2 (A) 13
    +12V3 (A) -
    +12V4 (A) -
    +12V5 (A) -
    +12V6 (A) -
    -12V (A) 0.3
    +5Vsb (A) 3
    Max. combined power 12V (W) 288
    Max. combined power 3.3V + 5V (W) 103
    Hold-up time at 100% load (ms) 29 (at80%)
    Power good signal 100 - 150ms

    Fan / Cooling technology

    Fan type High quality fan
    +SilentWings -
    Motor technology 4-pole fan motor
    Bearing technology Rifle
    Fan size (mm) 80
    Max. fan speed (rpm), temperature-dependent 1323
    Temperature control for case fans -
    dB(A) at 20% load 9.7
    dB(A) at 50% load 12.4
    dB(A) at 100% load 21.7

    Protection

    OCP (over current protection) Yes
    OVP (over voltage protection) Yes
    UVP (under voltage protection) Yes
    SCP (short circuit protection) Yes
    OTP (over temperature protection) -
    OPP (over power protection) Yes

    Safety certification

    CE Yes
    CB Yes
    TÜV Yes
    FCC -
    cRUus -
    cTUVus -
    RCM (Australia) -
    BSMI -
    CU (Russia) Yes
    CCC -

    Eco / Efficiency

    80 PLUS certification Gold
    Efficiency (%) at 230V, 20% load 88.9
    Efficiency (%) at 230V, 50% load 91.7
    Efficiency (%) at 230V, 100% load 90.6

    Environmental directives

    ENERGY STAR 8.0
    ErP Yes
    WEEE Yes
    RoHS Yes

    Cables / Connectors

    Nvidia® SLI (RTX 3090) ready -
    Cable management Fixed
    Sleeved cables Sleeved cables
    Flat cables Yes
    Cable length to mainboard (cm) 35
    Cable length to first connector (cm) 30
    Maximum cable length (cm) 60
    All-in-one cable (SATA/PATA/FDD) -
    No. of cables 5
    ATX-Motherboard (20+4-pin) 1
    P8 (CPU) -
    P4+4 (CPU) -
    P4 (CPU) 1
    PCI-E 6-pin (GPU) -
    PCI-E 6+2-pin (GPU) 2
    PATA 2
    SATA 3
    FDD (Floppy) 1
    External fan connectors -

    Casing

    Dimensions without cable (L x W x D), (mm) 175 x 85 x 65
    Weight (kg) 1.1
    Color Black

    Accessories

    Thumb screws -
    Screws Yes
    Cable ties Yes
    Hook & loop cable ties -
    Box/Bag for PSU/Cables -
    User manual languages DE, EN, ES, FR, PL, RU
    EAN: 4260052188293
    Manufacturer Part Number: BN323
