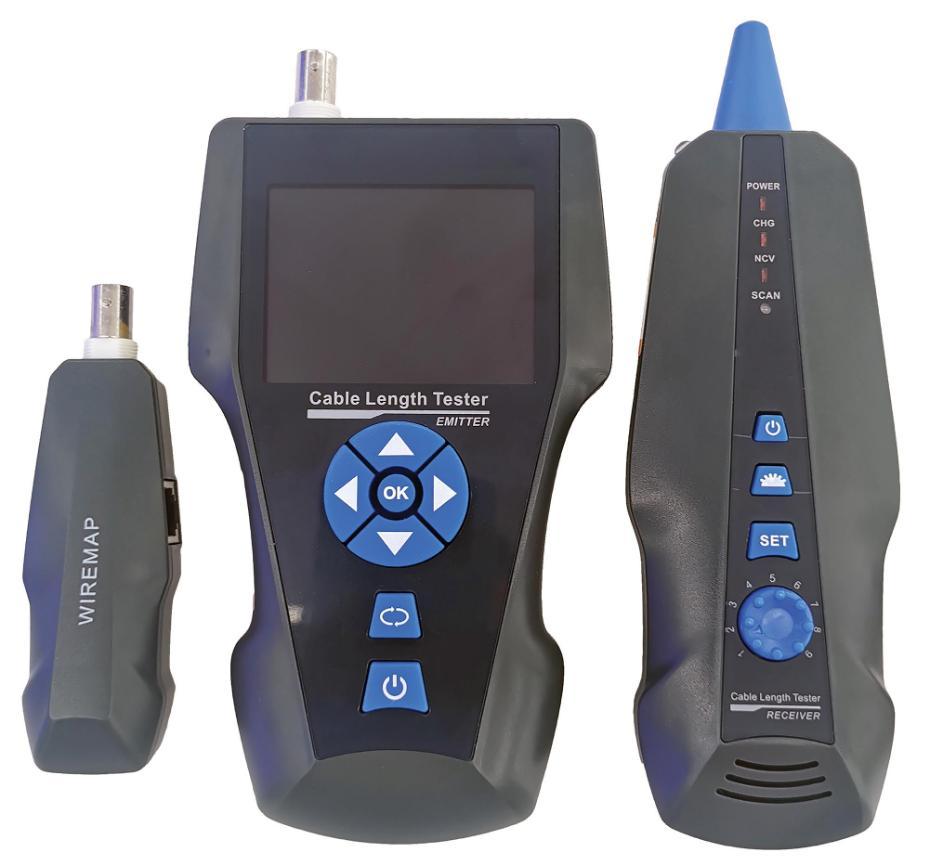

Cable Length Tester with TDR - D03481

Features

• Supports Cat5e, Cat6, Cat6a, Cat7, power cable (4+2 LAN cable, 8+2 LAN cable), telephone cable, coaxial cable tracking and testing
• Identify which pins are providing power and detect how much voltage
• Test network performance, data packet, min. and max. time
• Tone trace cable with complete AC interference rejection, three modes: high frequency/PoE switch/low frequency
• Hub blink for locating network ports by the flashing port light on a server/switch/hub/router port
• Tests cable lengths, distance to fault (DTF), graphical wire mapping, opens, and shorts etc.
• TF card included to export data to the computer
• Voltage detector is included in the receiver (90-1,000V)
• Max. test distance: 2km (wiremap), 1km (tracing)
