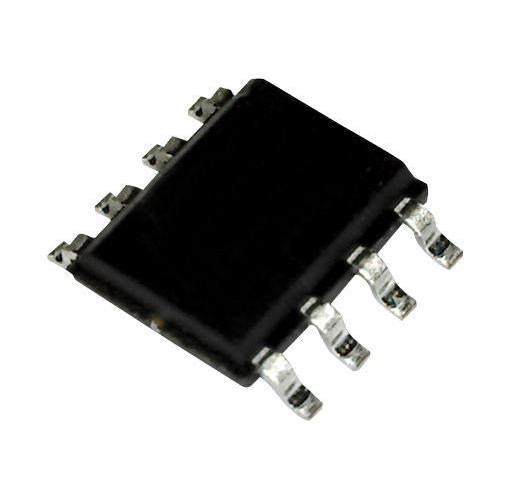

Comparator Dual, SMD, SOIC8, 393 - LM393D
Comparator Dual, SMD, SOIC8, 393 - LM393D
Regular price
£2.19 GBP
Regular price
Sale price
£2.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
These devices consist of two independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
Features
- Low supply-current drain independent of supply voltage
- Low input bias current
- Low input offset current
- Low input offset voltage
- Common-mode input voltage range includes ground
- Low output saturation voltage
- Output compatible with TTL, MOS, and CMOS
| Specifications | |
|---|---|
| Comparator Type | Differential |
| No. of Comparators | 2 Comparators |
| Response Time | 300ns |
| Supply Voltage Range | 2V to 36V |
| Comparator Case Style | SOIC |
| No. of Pins | 8Pins |
| IC Output Type | CMOS, MOS, TTL |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| Product Range | LM193, LM293, LM293A, LM393, LM393A, LM2903, LM2903V |
| Country of Origin: | Malaysia |
