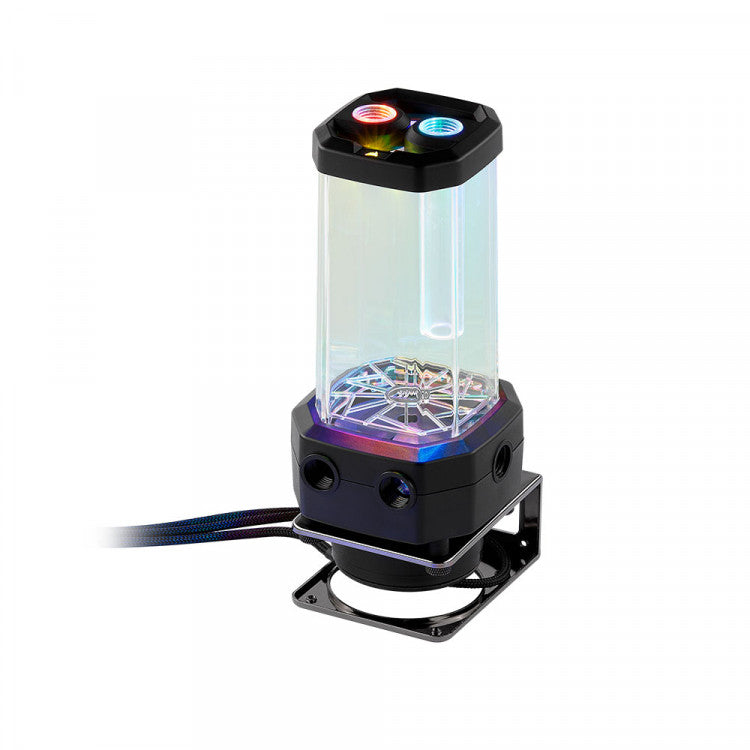

Corsair Hydro X Series XD5 RGB Black Reservoir / Pump Combo 330ml CX-9040006-WW

CX-9040006-WW

330ml Capacity

RGB Lighting

D5 Pump Included

PWM Control

3 Year Warranty

The CORSAIR Hydro X Series XD5 RGB Pump/Reservoir Combo is ready to drive the world"s most demanding custom cooling systems. A Xylem D5 PWM pump provides powerful flow rate for multi-block loops and is adjustable via PWM to maximize cooling capacity or minimize noise. Ten built in RGB LEDs, controlled adding a CORSAIR Lighting Node PRO or Commander PRO and powerful CORSAIR iCUE software, provide a vibrant splash of control to customize your lighting, while an included temperature sensor gives you real-time performance data from inside your system, for accurate cooling adjustment. Universally compatible with G1/4" fittings and with both 120mm and 140mm fan mounting brackets included, the XD5 RGB Pump/Reservoir is the heart of your custom cooling system.

Controlled Cooling from Every Angle: A high-performance Xylem D5 PWM pump controlled via PWM to deliver the perfect flow balance for your loop.

Vivid RGB Lighting: ten top-mounted RGB LEDs light up your coolant with stunning customizable RGB lighting when combined with a CORSAIR Lighting Node PRO or Commander PRO.

Your Coolant On Display: The integrated 250ml acrylic reservoir puts your custom cooling system"s coolant front-and-center, with stunning angular design and an integrated fillport that makes filling, flushing and topping-off coolant easy.

In-Loop Temperature Monitoring: Integrated G1/4 temperature sensor provides real-time coolant temperatures from inside your cooling loop.

Included 24-pin Power Supply Jumper Bridge: Allows you to start your pump without powering your main components, for easy and safe filling.

Rubberized Mounting System: Reduces pump vibrations and noise, so your custom cooling loop is seen, not heard.

Individually Sleeved Cabling: All the XD5 RGB Pump/Reservoir"s cabling is individually sleeved in premium paracord, ensuring your custom cooled system build looks great.

5V ARGB Motherboard Adapter Cable Included: Alternatively control lighting via compatible motherboards.br>
Multiple Installation Brackets: Easily mount the XD5 RGB Pump/Reservoir to a 120mm or 140mm fan mount or fan for wide chassis compatibility.

Standard G1/4” threads: All inlet/outlet ports provide universal fitting compatibility.

Specification:
- Product Type: Pump / Reservoir Combo
- Cooling Warranty: 3 Years
- Pump Type: Xylem D5 PWM
- Coolant Capacity: 330ml
- Max Hydraulic Performance: 800L/h at 2.1m pressure head
- Max RPM: 4800RPM
- PWM Duty Cycle Range: 20-100%
- Pump Voltage: 12V
- Max Power Draw: 30w
- Power Connector: 4-pin Molex (AMP Mate-N-Lok) - 45cm cable length
- Signal Cable: 4-pin fan header (KK254)- 45cm cable length
- Fluid Chamber Material: PMMA
- Compatible Materials: Only mix with other copper / brass products
- Port Thread: G1/4" BSPP
- Max Operating Temps: 60°C coolant temperature
- Required Controller for iCUE Support: CORSAIR Commander PRO
- Lighting: RGB
- Colour: Black
