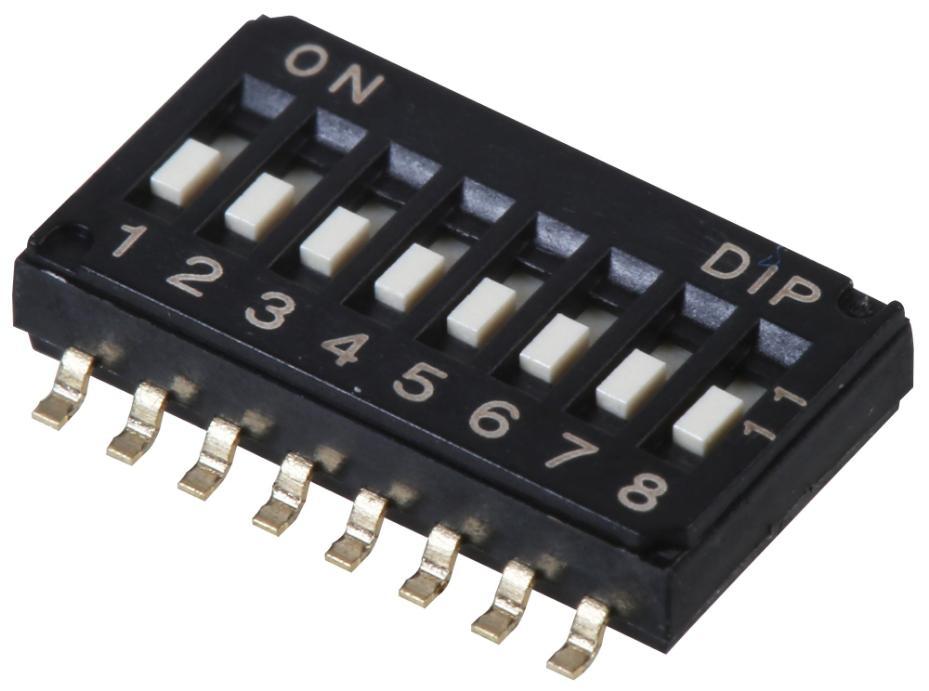

DIP Switch, Slide Actuator, 8 Way, Half Pitch, SPST, 24V DC, 25mA, SMD - MCDHA-08TQR
DIP Switch, Slide Actuator, 8 Way, Half Pitch, SPST, 24V DC, 25mA, SMD - MCDHA-08TQR
Regular price
£3.39 GBP
Regular price
Sale price
£3.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The MCDHA-08TQR from Multicomp Pro is a top tape sealed half pitch DIP switch. It is a low profile switch with 2.2mm height.
Features
- Switching capacity is 25mA at 24VDC
- SPST contact configuration
- 8 position switch
- Flush mounting
- Operating temperature range from -40°C to 85°C
- Operating force is 500gf
- Gold contacts for high reliability
- 100mohm maximum contact resistance (initial), 100Mohm minimum insulation resistance at 500VDC
- 1,000 cycles operating life
| Specifications | |
|---|---|
| No. of Circuits | 8Circuits |
| Switch Actuator Style | Slide |
| Switch Mounting | Surface Mount |
| Contact Configuration | SPST |
| Contact Voltage DC Max | 24V |
| Contact Current DC Max | 25mA |
| Product Range | MCDHA |
| Switch Type | DIP |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
