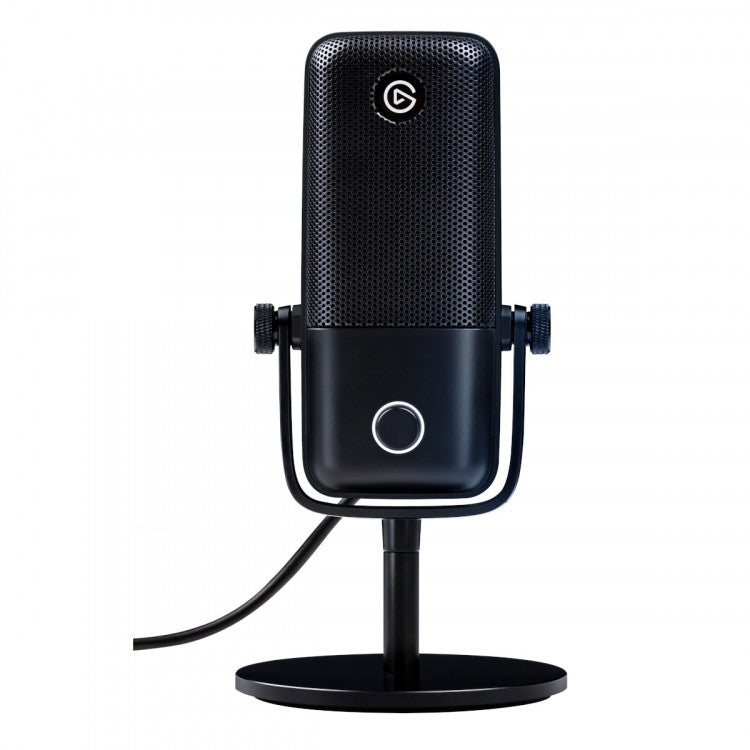

Elgato WAVE:1 Digital Mixing USB Microphone

Elagto Wave 1 USB Microphone

Wave:1 is your gateway to microphone and digital mixing mastery, fusing plug and play conve-nience with broadcast-grade circuitry. Never clip again thanks to proprietary anti-distortion technol-ogy. Connect headphones for zero-latency monitoring. Turn the dial to adjust monitor volume, press to mute your mic feed, and see mute status at a glance. Plus combine all your audio sources and create two independent mixes — one for you, one for your audience — with the Wave Link app. Wave:1 doesn"t just give your stream or podcast a professional sonic signature. It gives you control of your entire audio workflow.

Features:

• Condenser capsule with a tight cardioid polar pattern captures speech with precision




• Use the Wave Link app to control Wave:1 and up to seven other audio sources, plus create two independent mixes




• Up to 24-bit / 48kHz analog to digital conversion delivers lush detail




• Proprietary Clipguard technology makes distortion virtually impossible




• Superior circuitry ensures seamless audio signal transmission




• Switchable low-cut filter removes unwanted low-frequency noise




• 3.5 mm headphone jack for zero-latency monitoring




• Control dial to adjust monitor volume and mute mic — with LED mute status ring




• Internal pop filter prevents plosive breath noise




• Adjustable desktop stand with boom arm adapter for ultimate flexibility




• Custom accessories include a shock mount, external pop filter, and desktop stand extension rods (sold separately)

Specification:

• Capsule: 17 mm Electret




• Polar Pattern: Cardioid




• Resolution: 24-bit




• Sample Rate: 48 kHz




• Frequency Response: 70 - 20000 Hz




• Sensitivity: -25dBFS (min gain) | 15dBFS (max gain)




• Max SPL: 120dB (140dB Clipguard engaged)




• Dynamic Range: 95dB (115dB Clipguard engaged)




• Interface: USB-C




• Dimensions: 141 x 66 x 40 mm / 5.6 x 2.6 x 1.6 in




• Weight: Mic & U-Mount 245 g / 8.64 oz | Base 310 g / 10.93 oz

System Requirements:

• Windows 10 (64-bit) / macOS 10.15 or newer




• USB 2.0 port




• 4GB RAM
