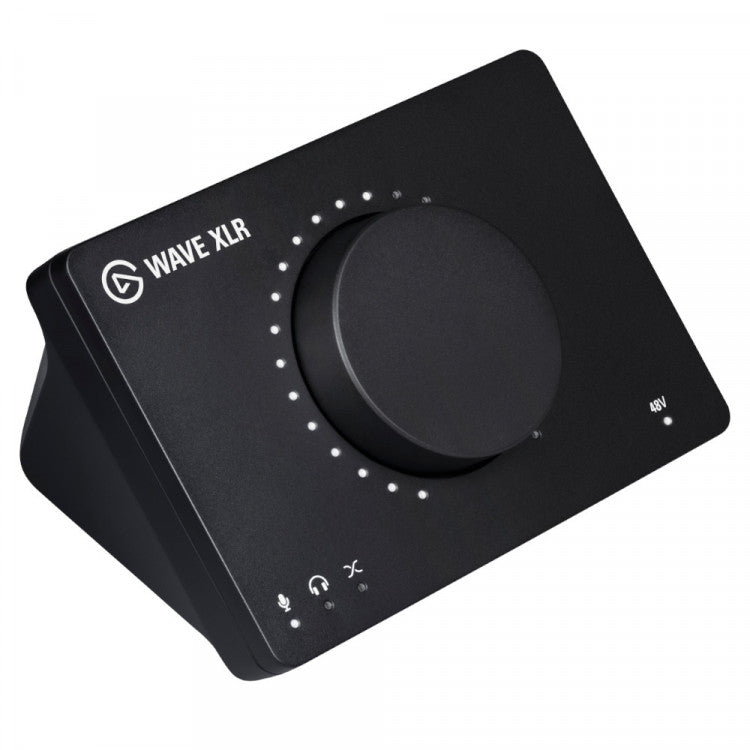

Elgato WAVE XLR Microphone Digital Mixing Solution (10MAG9901)

Wave XLR does the work of multiple devices and packs features you won‘t find in conventional audio interfaces. Like proprietary Clipguard anti-distortion technology, a capacitive mute button, and integration with custom Wave Link mixing software. With up to 75 dB of ultra-low-noise gain, even notoriously insensitive dynamic mics sound loud and clear. 48 volts of phantom power bring condenser mics to life, and two switchable low-cut filters let you remove low frequencies for close and distant mic positions. You can even swap out the faceplate and control dial. Wave XLR — a compact USB interface that gives your mic superpowers.

Features:
- Premium XLR to USB-C connection
- Use the Wave Link app to mix Wave XLR with multiple audio sources, plus create two independent mixes
- Proprietary Clipguard technology prevents microphone distortion
- Up to 75 dB of ultra-low-noise gain amplifies insensitive mics
- 48 V phantom power drives condenser microphones
- Dual selectable filters remove low frequencies
- High-power 3.5 mm headphone jack for clear zero-latency monitoring
- Capacitive mute button silences your mic feed upon the lightest touch
- Multifunctional control dial for mic gain, headphone volume, and mic / PC mix
- Faceplate and control dial can be swapped for different designs

Specfications:
- Frequency Response: 20 Hz - 20 kHz
- Dynamic Range: 100 dB (120 dB Clipguard engaged)
- Equivalent Input Noise (EIN): -130 dBV at 60 dB gain
- Gain Range: 0 - 75 dB
- Phantom Power: 48 VDC, 7mA
- Maximum Input Level: 10 V at 0 dB gain (Clipguard engaged)
- Maximum Output Level: 77 mW
- Resolution: 24-bit
- Sample Rate: 48 / 96 kHz
- Interface: USB-C

Requirements:
- Windows 10 (64-bit)
- macOS 10.15 or newer
- USB 3.0 or higher

Contents:
- Wave XLR
- USB-C Cable
- Quick Start Guide
