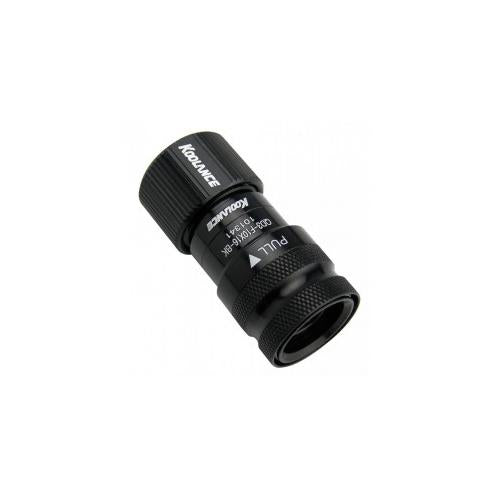

Koolance QD3 Female Quick Disconnect No-Spill Coupling Compression for 10x16mm

• Koolance (patent-pending) quick disconnect no-spill coupling with automatic shutoff. 10mm (3/8") ID
• 16mm (5/8") OD female straight connection with compression fitting - Black

QD3 Female Quick Disconnect No-Spill Coupling, Compression for 10mm x 16mm (3/8in x 5/8in) Koolance (patent-pending) quick disconnect no-spill coupling with automatic shutoff. 10mm (3/8") ID, 16mm (5/8") OD female straight connection with compression fitting. It will only fit a Koolance QD3 male shutoff valve.

After pulling the ring on the female QDC side, the quick-disconnect fittings will separate. Liquid on both sides will be automatically obstructed with approximately 0.2mL freed. Fittings are nickel-plated brass. Maximum operating pressure is 2kgf/cm2 (28.5 psi) @ 25°C. Maximum operating temperature is 100°C (212°F).

Specification:-
- ID: 10mm (3/8")
- OD: 16mm (5/8")
- Wall: 3mm (1/8")
