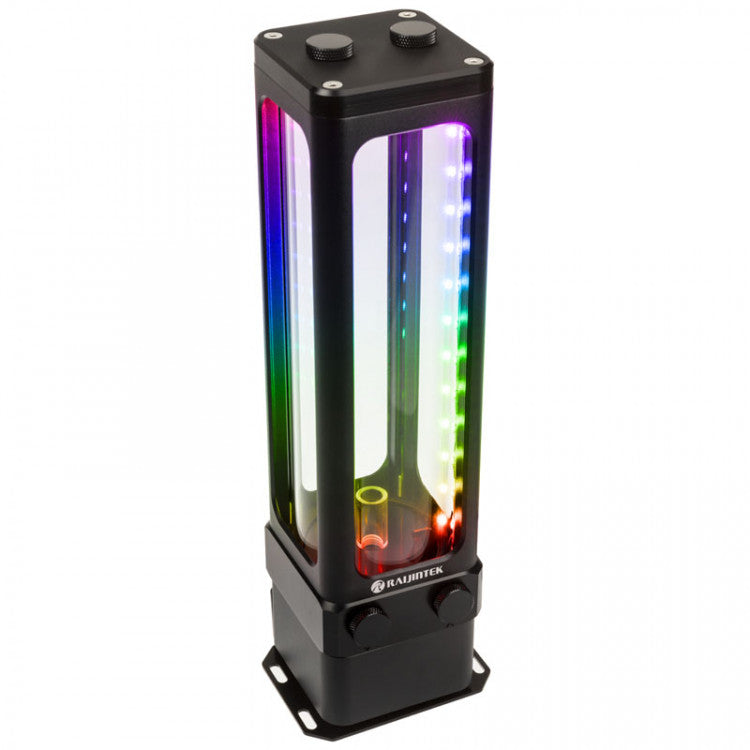

Raijintek ANTILA D5 EVO RBW Pump / Reservoir Combo - 200ml

Pump / Reservoir combo from Raijintek

D5 pump

200ml Capacity

Tempered Glass

Addressable RGB lighting

This pump and reservoir are equally suitable for RGB enthusiasts and water cooling enthusiasts. The ANTILA D5 EVO RBW pump / AGB combination delivers strong performance and stylish design in one.

The ANTILA D5 EVO RBW A-RGB pump / AGB combo at a glance:
- Combination of expansion tank and D5 pump
- Transparent tempered glass reservoir
- 3.9 m delivery head / 1500 liters per hour delivery volume
- Five speed levels with up to 4,800 rpm
- RGB lighting with twelve digitally addressable LEDs

The ANTILA D5 EVO RBW A-RGB pump / AGB combo in detail
With the ANTILA D5 EVO RBW , Raijintek has developed a high-quality expansion tank with an integrated D5 pump , which has a stylish design in addition to its performance. The built-in pump is ideal for water cooling systems, because it is equipped with an electronic ball motor, which is held in the pump by a special ball bearing made of ultra-robust ceramic. The pump achieves a maximum flow rate of 1500 L / h and a delivery head of 3.9 m.

The ANTILA D5 EVO RBW is connected via a Molex connector for the power supply and a 3-pin connectorto the mainboard or a fan or pump controller. The five power levels range from 1800 to 4800 revolutions per minute.

In addition, the 220 mm high tank always ensures sufficient reserves for water cooling and is made of tempered glass. Thanks to the variable bracket supplied, these AGB with pump are equally suitable for horizontal and vertical alignment. Almost every Wakü port can be connected to a G1 / 4 port on a total of four G1 / 4 ports .

Technical details:
- Dimensions: 80 × 95 × 305 mm (L x W x H)
- Weight: approx. 1260 g
- Material: POM (pump), tempered glass (reservoir), aluminum (sealing plug), steel (holder)

Reservoir:
- Dimensions: 60 x 60 x 220 mm
- Ports: 4x G1 / 4-inch

Pump:
- Delivery head: approx. 3.9 m
- Maximum flow rate: 1500 L / h
- Pressure: max. 50 PSI
- Bearings: ceramic
- Input voltage: 12 V

Power levels:
- P1: 1,800 rpm
- P2: 2,500 rpm
- P3: 3,300 rpm
- P4: 4,000 rpm
- P5: 4,800 rpm

- Volume: 40 dB (A)
- Connection: 4-pin Molex (power), 3-pin 2510-3P [NA / NA / Fg]

Illumination:
- Addressable LED 12 LED Rainbow (4pin header, 2510 spec) - Addressable LED
- Motherboard control / Remote control (by using Raijintek control hub)
- 4-PIN header
- 5V
