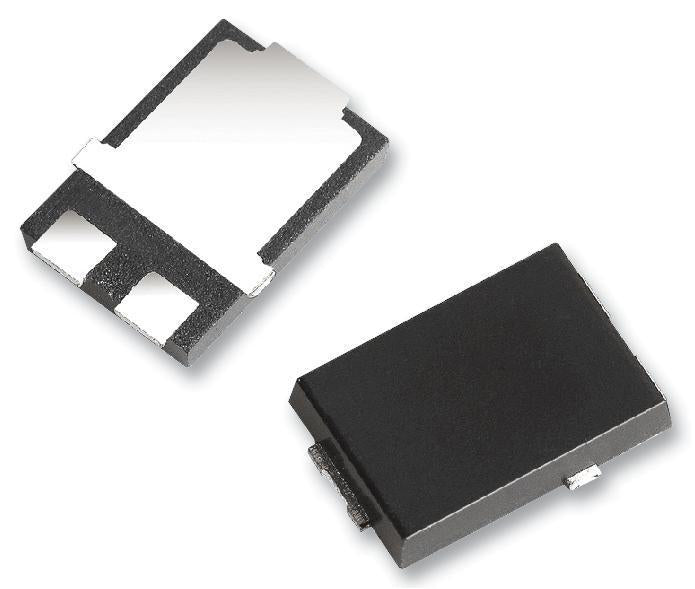

Schottky Rectifier, POWERDI®, 40 V, 10 A, Single, PowerDI 5, 2 Pins, 490 mV - PDS1040L-13
Schottky Rectifier, POWERDI®, 40 V, 10 A, Single, PowerDI 5, 2 Pins, 490 mV - PDS1040L-13
Regular price
£2.19 GBP
Regular price
Sale price
£2.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The PDS1040L-13 is a POWERDI® Schottky Barrier Rectifier with matte tin annealed over copper lead frame terminals and UL94V-0 flammability-rated moulded plastic case. The barrier rectifier features guard ring die construction for transient protection, very low forward voltage drop and high forward surge current capability.
Features
- Level-1 per J-STD-020 moisture sensitivity
- 28V RMS reverse voltage
- 1.5°C/W Junction to soldering point thermal resistance
| Specifications | |
|---|---|
| Repetitive Reverse Voltage Vrrm Max | 40V |
| Forward Current If(AV) | 10A |
| Diode Configuration | Single |
| Diode Case Style | PowerDI 5 |
| No. of Pins | 2Pins |
| Forward Voltage VF Max | 490mV |
| Forward Surge Current Ifsm Max | 275A |
| Operating Temperature Max | 150°C |
| Product Range | PDS10 Series |
| Country of Origin: | China |
