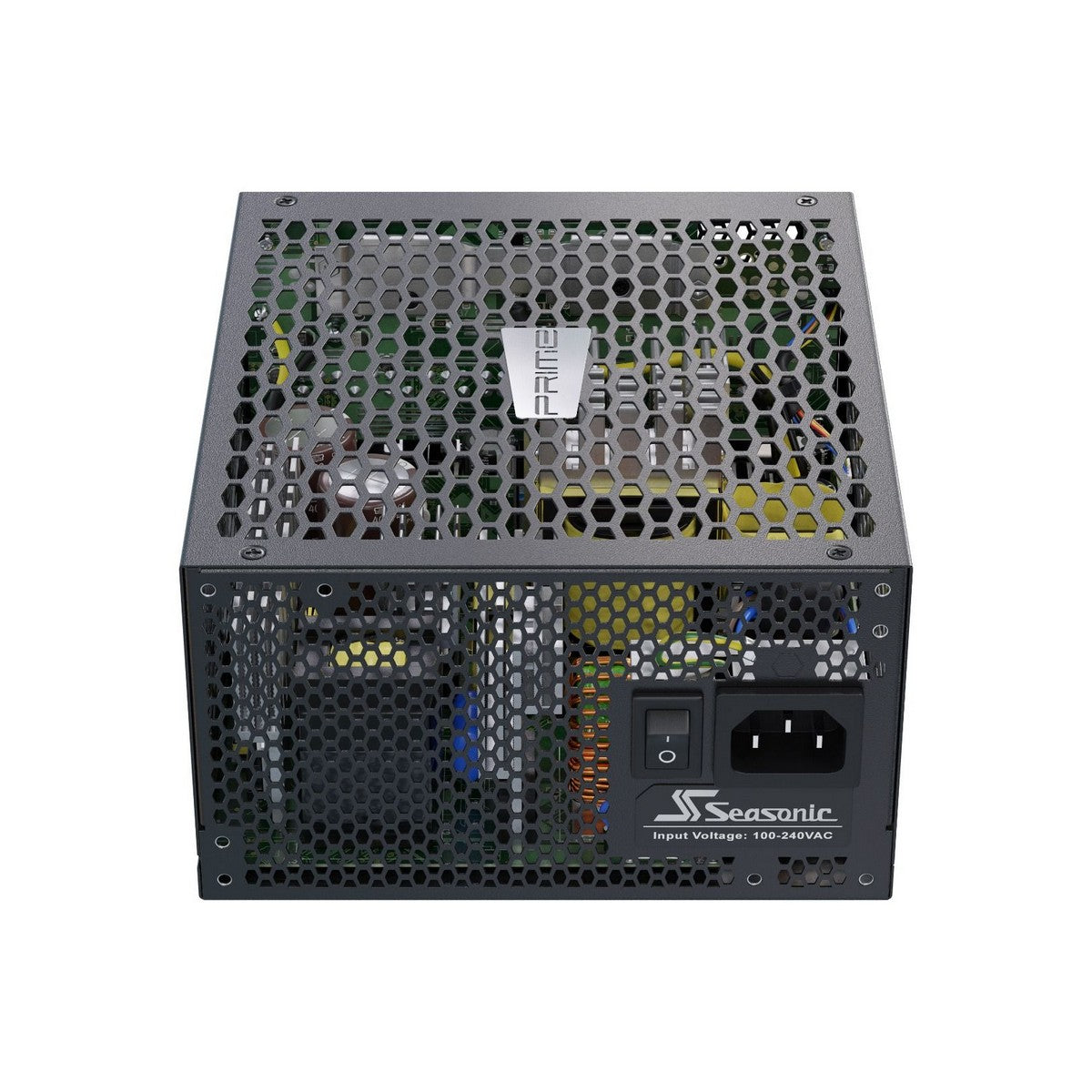

Seasonic PRIME TX-700 700W 80 Plus Titanium Modular Fanless Power Supply

PRIME FANLESS TX

PRIME Fanless TX utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Titanium efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.

80 PLUS® TITANIUM
The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.

MICRO TOLERANCE LOAD REGULATION
Seasonic"s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

SEASONIC FANLESS DESIGN
Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.

FEATURE SUMMARY
80 PLUS® Titanium certified
Micro Tolerance Load Regulation (0.5 %)
True Fanless Design
Multi-GPU setup
Gold plated connectors
12 years warrany


SPECIFICATIONS

80PLUS®: Titanium
Cybenetics Efficiency Level: TBA
Cybenetics Noise Level: TBA
Form Factor: Intel ATX 12 V
Dimensions: 170 mm (L) x 150 mm (W) x 86 mm (H)
Fan Size: N/A
Fan Control: N/A
Fan Bearing: N/A
Life Expectancy: N/A
Modularity: Fully Modular
Cable type: Webbed cables (MB, CPU, PCIe) Flat black cables
Operating Temperature: 0 - 45 °C (derating from 100 % to 80 % from 40 °C to 45 °C)
MTBF at 25 °C, excl. fan: 150,000 hours
AC Input: Full Range
Protection: OPP, OVP, UVP, OCP, OTP, SCP
Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 12 Years
AC Input Voltage: 100 V - 240 V
Current: 9.5-4.5 A
Frequency: 50 Hz - 60 Hz
