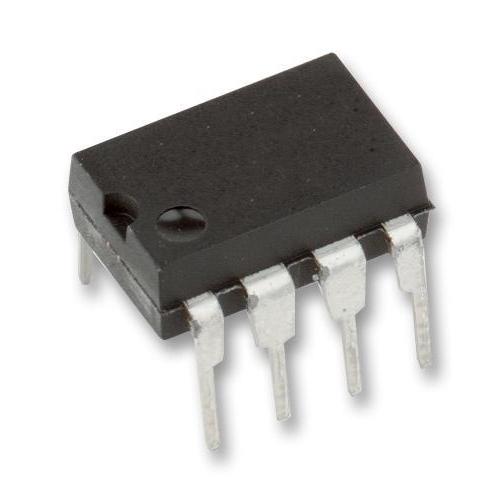

0.3V/µs Slew Rate, 0.6MHz Bandwidth Precision Operational Amplifier in PDIP-8 Package - OP07CP .
0.3V/µs Slew Rate, 0.6MHz Bandwidth Precision Operational Amplifier in PDIP-8 Package - OP07CP .
Regular price
£3.89 GBP
Regular price
Sale price
£3.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
These devices offer low offset and long-term stability by means of a low-noise, chopper less, bipolar-input-transistor amplifier circuit. For most applications, external components are not required for offset nulling and frequency compensation. The true differential input, with a wide input-voltage range and outstanding common-mode rejection, provides maximum flexibility and performance in high-noise environments and in non-inverting applications. Low bias currents and extremely high input impedances are maintained over the entire temperature range. The OP07 is unsurpassed for low-noise, high-accuracy amplification of very-low-level signals.
Features
- Low noise
- No external components required
- Replace chopper amplifiers at a lower cost
- Wide input-voltage range
- Wide supply-voltage range
| Specifications | |
|---|---|
| No. of Amplifiers | 1 Amplifier |
| Bandwidth | 600kHz |
| Slew Rate | 0.3V/μs |
| Supply Voltage Range | ± 3V to ± 18V |
| Amplifier Case Style | DIP |
| No. of Pins | 8Pins |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| Product Range | OP07X Series |
| Country of Origin: | Mexico |
