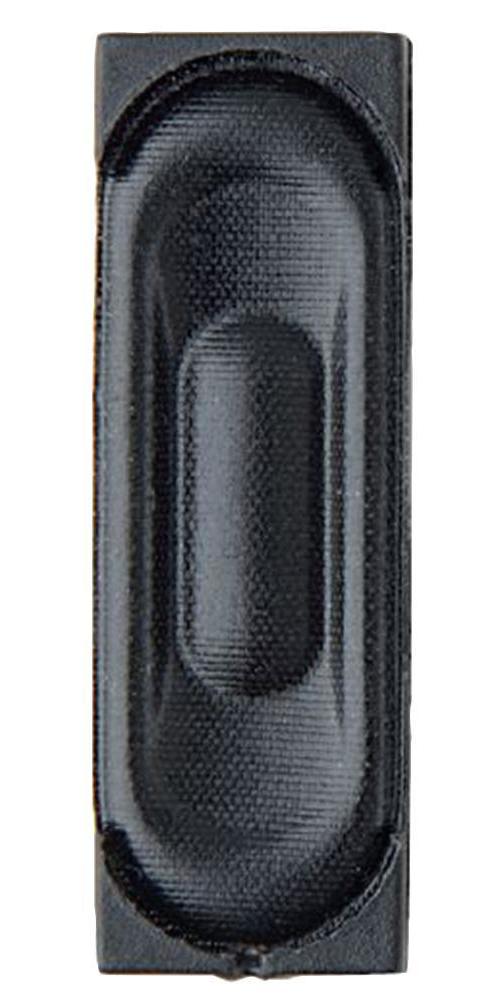

0.5W Miniature Driver 1x3cm 8R - K10.30,8OHM
0.5W Miniature Driver 1x3cm 8R - K10.30,8OHM
Regular price
£3.69 GBP
Regular price
Sale price
£3.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
1x3cm (0.39" x 1.2") miniature speaker with plastic basket and coatet fabric cone. The electrical contact is done via solder pads at the rear side. Suitable for signal and speech output in applications with very little space and footprint.
Features
- Output power: 0.5W rms (max. 1W)
- Nominal impedance: 8R
- Frequency response: 750Hz to 20kHz
- Mean SPL: 85dB (0.1Wat 0.1m)
- Resonant frequency: 1200Hz
- Dimensions (HxWxD): 30x10x5mm
- Weight: 2.5g
| Specifications | |
|---|---|
| Driver Type | Miniature |
| External Width - Metric | 10mm |
| Impedance | 8ohm |
| Power Rating Nom | 500mW |
| Sound Level SPL | 85dBA |
| External Width - Imperial | 0.394" |
| Frequency Response Min | 750Hz |
| Frequency Response Max | 20kHz |
| Speaker Shape | Rectangular |
| Resonant Frequency | 1200Hz |
| Speaker Mounting | Through Hole |
| Power Rating Max | 1W |
| External Length - Metric | 30mm |
| External Depth - Metric | 5mm |
| External Length - Imperial | 1.181" |
| External Depth - Imperial | 0.197" |
| Product Range | WHALE Ceiling Speakers |
| Country of Origin: | China |
