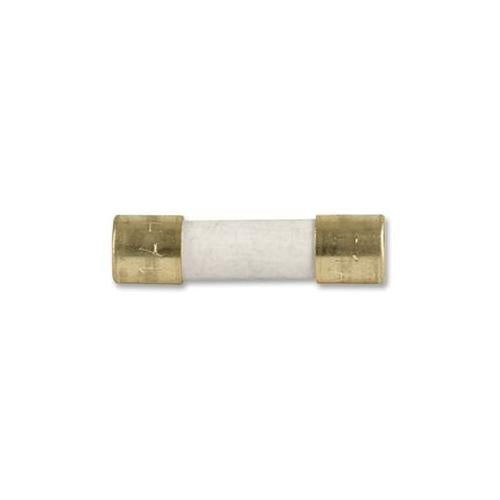

0001.2707.11 Schurter Fuse, SMD, 5X20mm, T, Hbc, 2A
0001.2707.11 Schurter Fuse, SMD, 5X20mm, T, Hbc, 2A
Regular price
£1.89 GBP
Regular price
Sale price
£1.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Product Description
The 0001.2707.11 is a 2A/250VAC time-lag Non-resettable Fuse with ceramic tube and gold-plated copper alloy terminals. This SPT-series surface mount fuse features high breaking capacity. Directly solderable on printed circuit boards. Provides low voltage primary and secondary protection. Devices meet applicable international safety standards. Used for primary protection on SMD PCBs.
Product Features
- Withstands reflow and wave soldering temperatures to 260°C/10s
- 190mV Maximum voltage drop
- 2500mW Maximum Power dissipation 1.5 In
- -55 to 125°C Operating temperature range
Product Details
| Blow Characteristic: | Time Delay |
| Breaking Capacity Current AC: | 1.5kA |
| Breaking Capacity Current DC: | 1.5kA |
| Fuse Case Style: | SMD |
| Fuse Current: | 2A |
| Fuse Size Metric: | 5mm x 20mm |
| Product Range: | SPT Series |
| Voltage Rating V AC: | 250V |
| Voltage Rating V DC: | 300V |
