1" 30W Compression Driver 8R - CD130
1" 30W Compression Driver 8R - CD130
Regular price
£40.29 GBP
Regular price
Sale price
£40.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

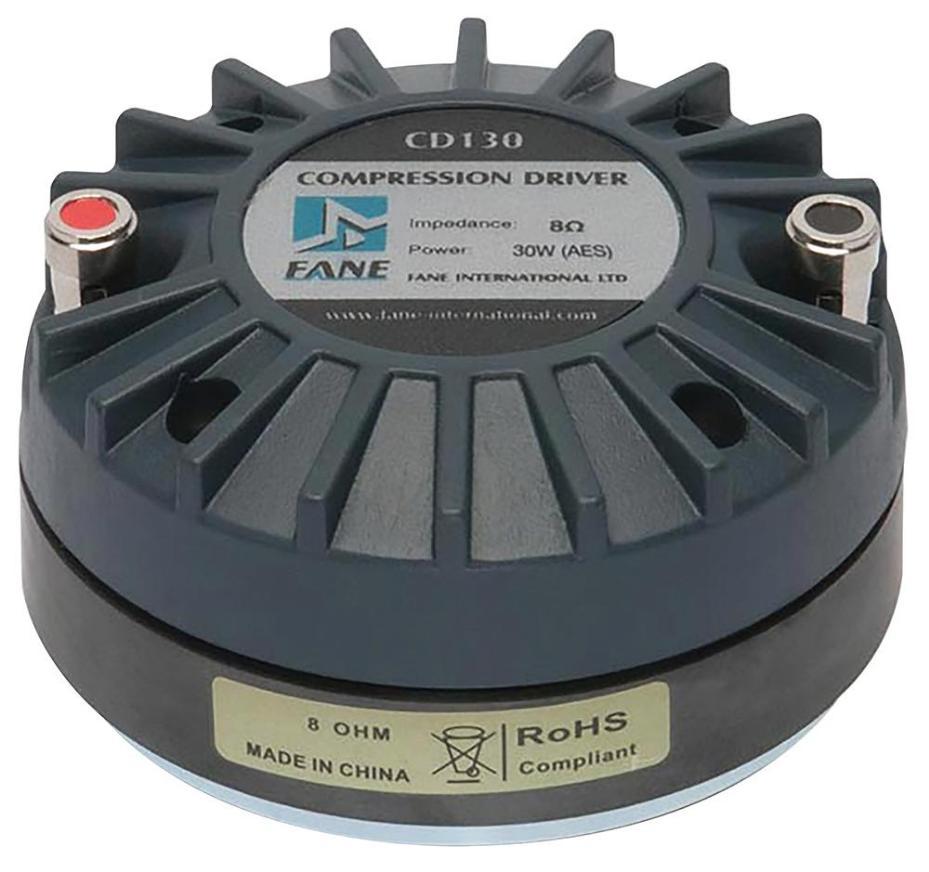

The CD130 is a 1" industry standard small format diaphragm compression driver. The CD-130 combines high BL and a very lightweight diaphragm assembly producing high output that offers extended bandwidth and well defined frequency response to 18kHz. The driver has a rated low frequency response limit of 2kHz and has a smooth response throughout entire bandwidth. The CD130 features an industry standard screw fit mounting system that is ideally matched to commercially available female screw thread horns.
Features
- 1.375" Aluminium voice coil
- Titanium diaphragm
- Screw fit mounting
- Frequency response: 2kHz to 18kHz
- Magnet material: Ferrite
- Connectors: Push button spring terminals
- Dimensions (DxDia): 44x90mmØ
- Weight: 910g
| Specifications | |
|---|---|
| Transducer Function | Speaker |
| Power Rating RMS | 30W |
| Impedance | 8ohm |
| Frequency Response Min | 2kHz |
| Frequency Response Max | 18kHz |
| Sensitivity (dB) | 106dB |
| Product Range | Fane Compression Drivers 8R |
| Country of Origin: | China |
