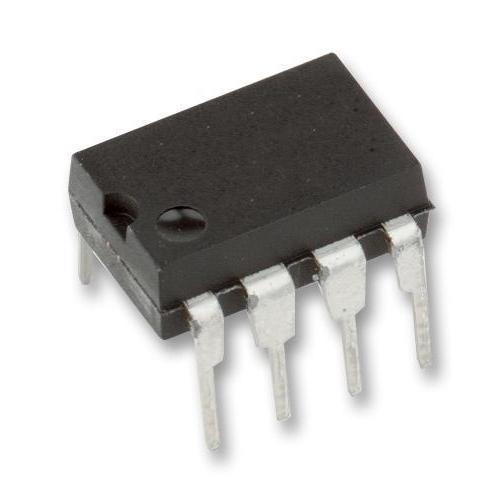

1.7V/µs Slew Rate, 3MHz Bandwidth Dual General Purpose Operational Amplifier in PDIP-8 Package - RC4558P .
1.7V/µs Slew Rate, 3MHz Bandwidth Dual General Purpose Operational Amplifier in PDIP-8 Package - RC4558P .
Regular price
£1.79 GBP
Regular price
Sale price
£1.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The RC4558 device is a dual general-purpose operational amplifier, with each half electrically similar to the μA741, except that offset null capability is not provided. The high common-mode input voltage range and the absence of latch-up make this amplifier ideal for voltage-follower applications. The device is short-circuit protected, and the internal frequency compensation ensures stability without external components.
Features
- Continuous short-circuit protection
- Wide common-mode and differential voltage ranges
- No frequency compensation required
- Low power consumption
- No latch-up
- Gain and phase match between amplifiers
- Low noise
| Specifications | |
|---|---|
| No. of Amplifiers | 2 Amplifier |
| Bandwidth | 3MHz |
| Slew Rate | 1.7V/μs |
| Supply Voltage Range | ± 5V to ± 15V |
| Amplifier Case Style | DIP |
| No. of Pins | 8Pins |
| Operating Temperature Min | 0°C |
| Operating Temperature Max | 70°C |
| Product Range | General Purpose OPAMP |
| Country of Origin: | Mexico |
