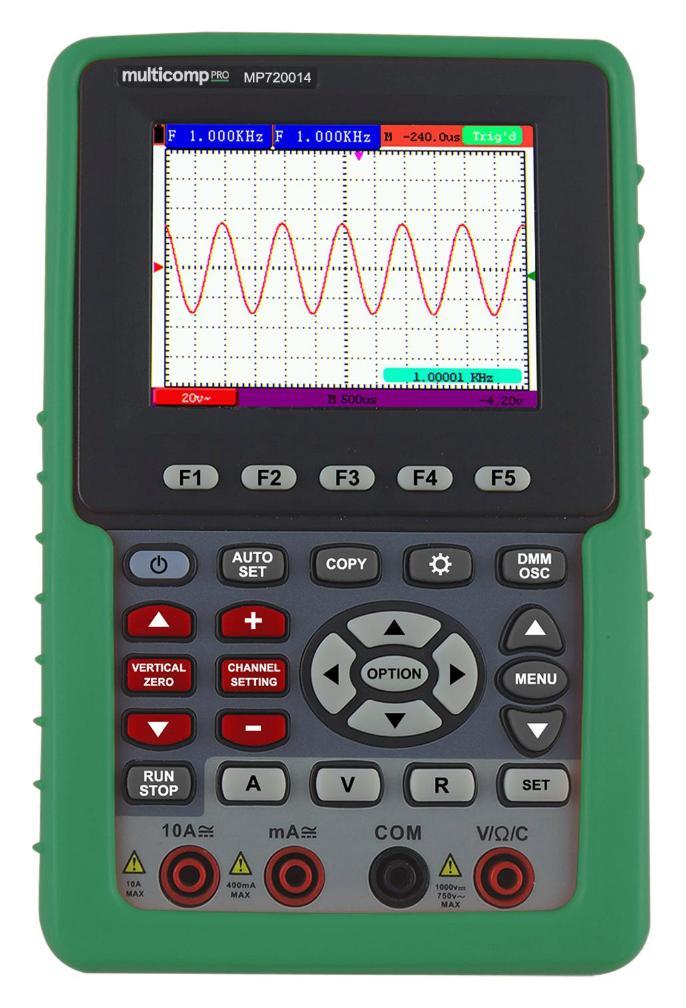

1-Channel Handheld Digital Storage Oscilloscope, 20MHz - MULTICOMP PRO
1-Channel Handheld Digital Storage Oscilloscope, 20MHz - MULTICOMP PRO
Regular price
£253.79 GBP
Regular price
Sale price
£253.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Multicomp Pro MP720014 is a 2-in-1, 20MHz, 8-bit handheld digital storage oscilloscope with digital multimeter.Featuring auto-scale functionality, 20 automatic measurements, USB data transmission support, waveform record and replay, newly supported SCPI and a rechargeable Li-ion battery.
Product Info
- Auto-scale status
- 3.7" colour TFT display (640x480)
- Trigger sensitivity adjustable
- 24k points record length
- 8 bit vertical resolution (A/D)
- 5mV/div~5V/div vertical resolution (at input)
- Edge and video trigger types
- Auto, normal and single trigger modes
- Trigger level - ±6 divisions from screen centre
- Sample, peak detect and average acquisition modes
- 4 waveform storage
- Mini-USB and Mini-RS232 communication interfaces
- Dimensions - 115 x 180 x 40mm
- Device weight - 645g
| Details | |
|---|---|
| Product Range | Handheld DSO Series |
| Scope Channels | 1 Analogue |
| Bandwidth | 20MHz |
| Sampling Rate | 500MSPS |
| Display Memory Depth | 24 kpts |
| Calculated Rise Time | 17.5ns |
| Scope Display Type | TFT LCD Colour |
| Kit Contents | DSO w/MM, Power Cord, USB Cable, CD Rom, Manual, Probes, Probe Adjust Tool, MM Lead, Adptr, Soft Bag |
| Manufacturer Warranty | 1 Year |
| Plug Type | EU, UK |
| Product Contents: | Handheld Digital Storage Oscilloscope, 2x Probes, Power Adaptor, USB Mass Storage Connection Cable, USB Communication Cable, Extension Module for Capacitance Measurements, Output Terminal for 1KHz 5V Square-Wave Test Signals, CD-ROM, Operating Instructions, UK & EU Power Cords |
| Important Product Info: | In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details. |
| Country of Origin: | China |
