10" 250W Low-Mid Range Driver 8R, 902.105UK - LFCASA-10
10" 250W Low-Mid Range Driver 8R, 902.105UK - LFCASA-10
Regular price
£46.69 GBP
Regular price
Sale price
£46.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

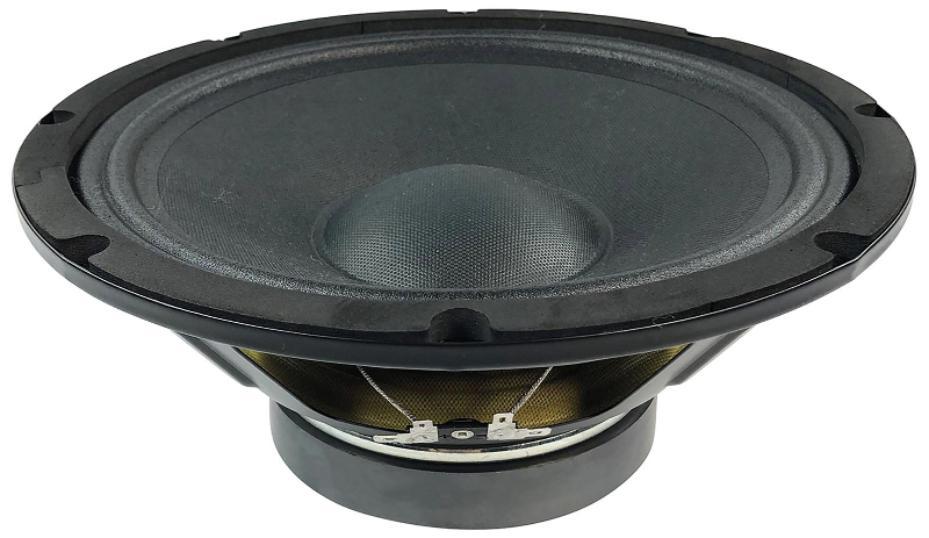

This is a 10" woofer with high efficiency and balanced frequency response in low-mid range, also with slightly increased middle frequency range. It is fitted with reinforced paper cone and steel frame basket. Especially suitable as a replacement for CASA series passive cabinets.
Features
- 2" Voice coil
- Magnet: 40oz
- Output power: 250W rms (500W max.) at 8R
- Frequency response: 55Hz to 3kHz
- Sensitivity: 95dB
- Reinforced paper cone with steel frame basket
- Dimensions (HxDia): 130x257mmØ
- Weight: 2.6kg
| Specifications | |
|---|---|
| Driver Type | Woofer |
| External Diameter - Metric | 257mm |
| Impedance | 8ohm |
| Power Rating Nom | 250W |
| Sound Level SPL | 95dBA |
| External Diameter - Imperial | 10" |
| Frequency Response Min | 55Hz |
| Frequency Response Max | 3kHz |
| Speaker Shape | Round |
| Speaker Mounting | Through Hole |
| Power Rating Max | 500W |
| External Depth - Metric | 130mm |
| External Depth - Imperial | 5.2" |
| Product Range | Citronic Low-Mid Drivers 8R |
| Country of Origin: | China |
