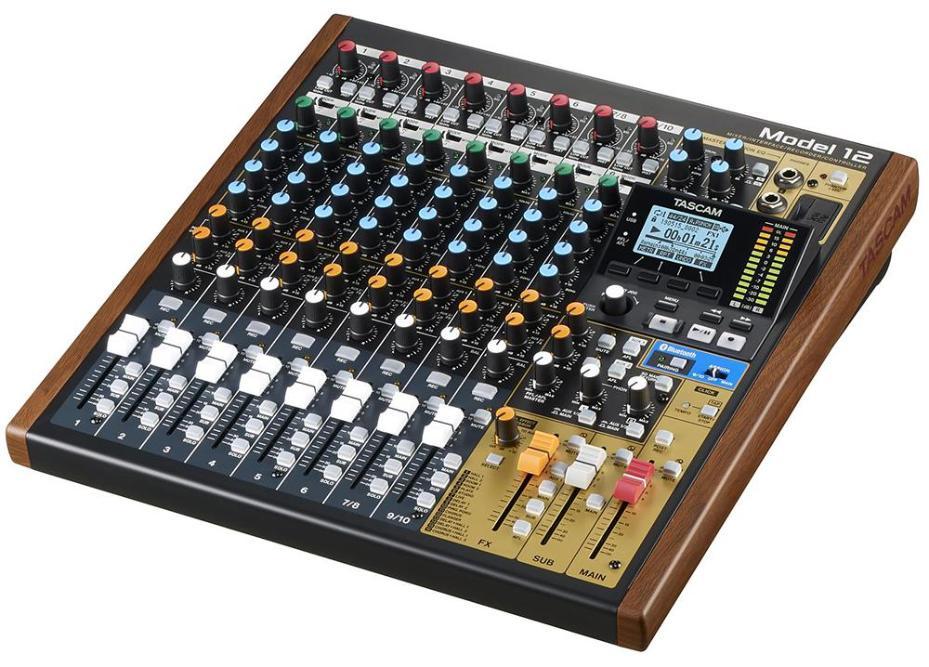

10 Channel Analog Mixer with 12 Track Digital Recorder, USB & BT - MODEL 12
10 Channel Analog Mixer with 12 Track Digital Recorder, USB & BT - MODEL 12
Couldn't load pickup availability
Tascam Model 12 is a compact all-in-one integrated mixing and recording suite designed for music and multimedia creators, songwriters and performers. It features 10x inputs for the mixer, a 12 track version of the Tascam multi-track audio recorder, USB audio interface, MIDI connectivity, DAW control functions and unique podcasting capability including mix-minus and smartphone input. Combining the feel of the analog user interface with efficient workflow and pristine quality associated with digital recording and production - the compact and affordable Model 12 supports your creative process from start to finish. The intuitive internal 12-track recorder creates WAV files of up to 24-bit/48kHz audio quality directly to SD card. Up to 10x tracks can be played back simultaneously. It also supports metronome, punch-in/out and overdubbing functions, allowing WAV files to be imported from another Tascam Model Series.
Features
- 10x Analog inputs on 6x mono and 2x stereo channels (8x XLR/jack combo with 48V phantom power, 10x high-Z or line inputs)
- Multi-purpose stereo input via TRRS jack or Bluetooth (5.0)
- Inserts on input channels 1 and 2
- Mix-minus function on smartphone mini-jack input
- 2x AUX outputs (monitor, effects) and 2x stereo outputs (XLR & TRS) with independent master faders (Main & Sub)
- Monitoring can be selected between PFL (pre-fader), AFL (after-fader) and SIP (solo-in-place)
- Dedicated click output with tap tempo feature
- One-knob compressor for all input channels
- 3 Band EQ with sweepable mids for all input channels, semi-parametric EQ with sweepable mid band for aux or main outputs
- On-board 16x effects processor
- 12x LED output level meters
- 2x Headphones outputs with separate level controls
- Tascam multi-track recording engine uses SD as storage media (up to 512GB) - up to 12x tracks (10x mono + 1x stereo) can be recorded without any computer
- MIDI input and output
- Recording/playback format: WAV, 44.1/48kHz, 16/24-bit
- USB audio interface for use with Windows (ASIO) and Mac (Core Audio) computers
- Simple and quick menu operation with multi-jog dial
- Frequency response: 20Hz to 20kHz
- Power supply: Tascam AC adaptor (included) 100 to 240V AC, 50/60Hz
- Dimensions (HxWxD): 99x343x360mm
- Weight: 4.3kg
| Specifications | |
|---|---|
| Product Range | TASCAM Analog Mixing Desks/Recorders |
| Plug Type | UK |
| Product Contents: | Model 12, AC adaptor, USB-C to A lead, TRRS lead |
| Country of Origin: | China |
