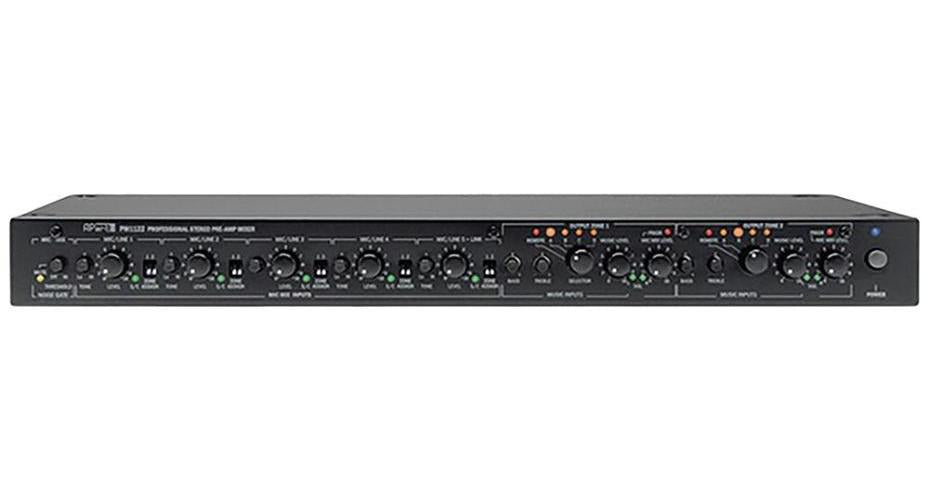

10 Channel Mic/Line 2-Zone Preamplifier/Mixer 1U - UK-PM1122
10 Channel Mic/Line 2-Zone Preamplifier/Mixer 1U - UK-PM1122
Regular price
£402.39 GBP
Regular price
Sale price
£402.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The PM1122 is a stereo preamplifier ideal for 1 and 2 zone applications where you want to have a different volume setting and where a different sound source is needed. This unit features 2x stereo output zones and up to 9x inputs (5x mic/line and 4x stereo line). All inputs can be assigned to zone 1, zone 2 or both output zones. It allows to create a true 2-zone system. The buttons of the unit can be covered with an included metal plate to avoid tampering of the settings. Thanks to all these possibilities, the PM1122 is an extremely versatile preamplifier that can be used in almost every application.
Features
- Inputs: 5x mic/line (Euroblock) with phantom power each (+20V), 4x stereo RCA (individual volume controls), 1x emergency input Euroblock
- Outputs: 2x stereo RCA L/R, 2x Euroblock
- Individual tone, gain and volume control per mic/line input
- 4x Level priority system with emergency input
- Noise gate with adjustable threshold
- Mic input 5 can be link input to/from another PM1122 (output link L/R)
- Bass/treble tone control per output zone
- Built in chime (volume adjustable), priority input
- 1U 19" rackmountable
- THD: <0.008%
- SNR: >93dB
- Crosstalk: >70dB
- Frequency response: 20Hz to 22kHz
- Power supply: 115 to 230V, 50/60Hz
- Power consumption: 24W
- Dimensions (HxWxD): 44x483x249mm
- Weight: 3.2kg
| Specifications | |
|---|---|
| Product Range | APART Zoning Preamps |
| Plug Type | UK |
| Country of Origin: | China |
