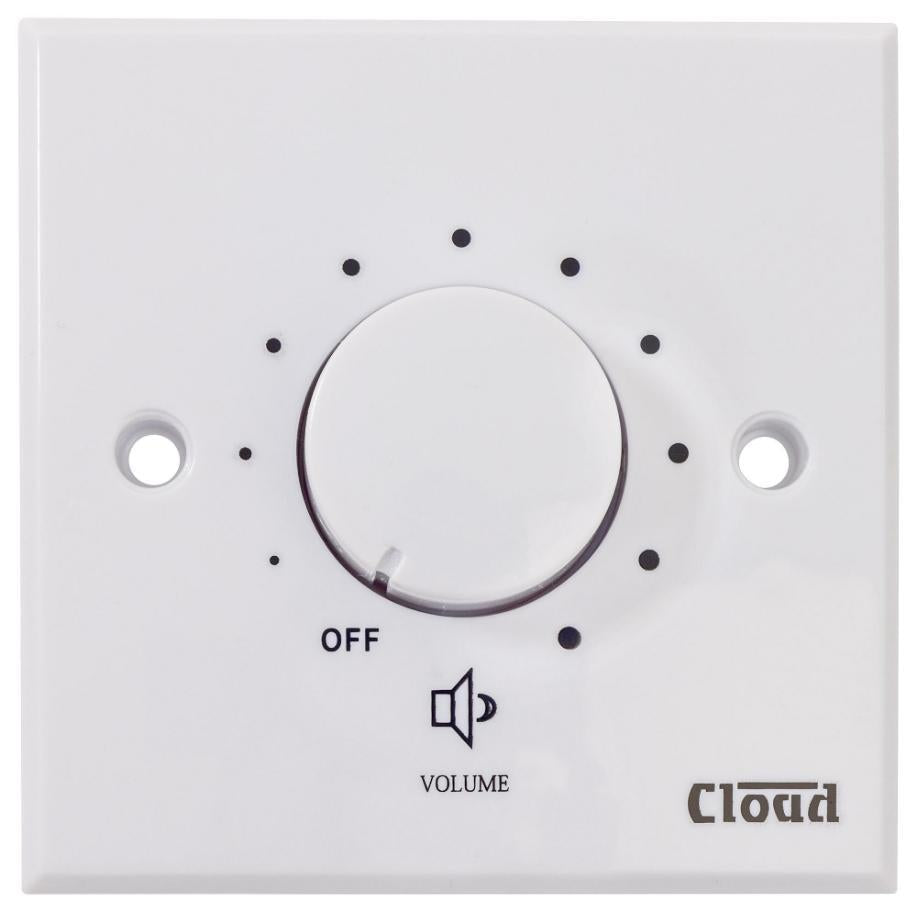

100V Attenuated Volume Control, 60W - CVC-60
100V Attenuated Volume Control, 60W - CVC-60
Regular price
£52.19 GBP
Regular price
Sale price
£52.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Cloud CVC-60 60W 100V Attenuated Volume Controls is part of the Contractor Series and are design to support the family of Contractor Series electronics such as the VMA Series of mixer amplifiers and VA Series of multichannel power amplifiers. Although this type of 100V line attenuated volume controller can be used on any 100V line circuit. This offers the ability to precisely control audio level of individual 100V speakers or multiple 100V speakers in a daisy chain wiring configuration. All models feature a 10-step attenuation including OFF position and are 1 Gang UK fixing.
Features
- Attenuation Positions: 10 Plus Off
- Attenuation Steps (dB): 0-3,-6,-10,-12,-15,-17,-20,-26,-32, OFF
- Output Level (dBrA): -11,-14,-17,-20,-22,-25,-28,-31,-37,-43
- Nominal THD: 0.02%
- Frequency Response: 20Hz to 20Khz,+3.9dB to -1.4dB
- Termination: 4 Pin Euroblock
- Faceplate Material: ABS
- Dimensions (HxWxD): 87x87x50mm
| Specifications | |
|---|---|
| Country of Origin: | China |
