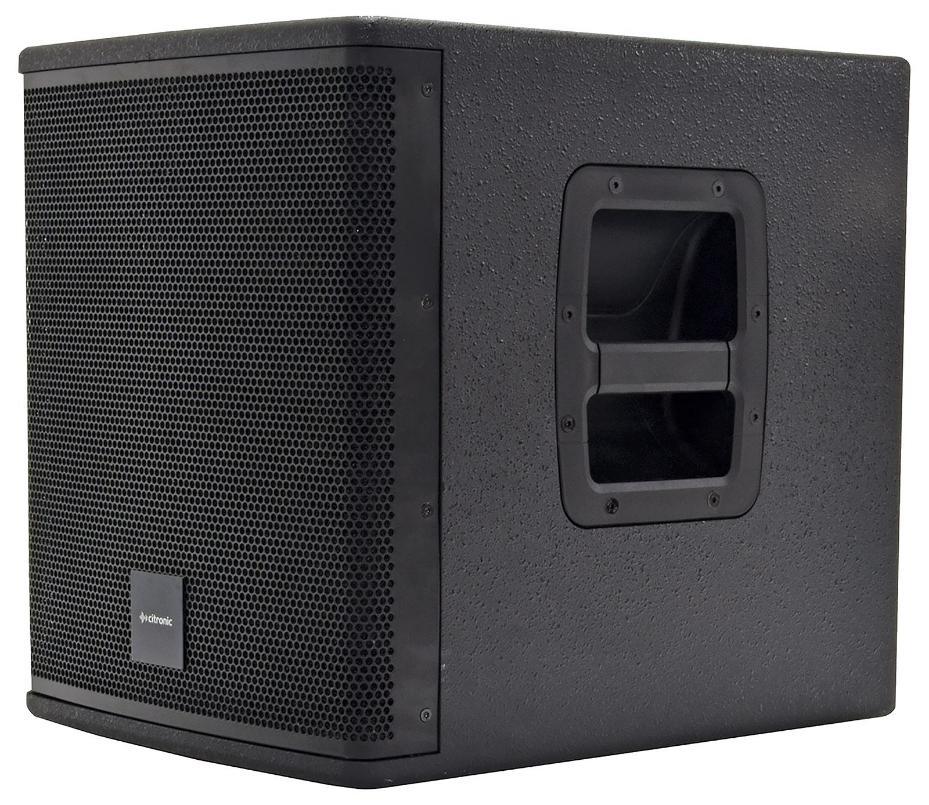

10"Active Sub Cabinet Speaker, 300W - CASA-10BA
10"Active Sub Cabinet Speaker, 300W - CASA-10BA
Couldn't load pickup availability
Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.
Features
- Compact and lightweight design
- 15mm MDF cabinets with hard-wearing paint finish
- 2x side carry handles
- 35mm pole mount socket
- Power supply: 230V AC, 50Hz (IEC)
- Construction: 15mm MDF with durable texture paint finish
- Hardware: 2x side carry handles + 35mm pole mount socket
- Amplifier Construction: CLass D
- Line inputs: L+R balanced XLR
- Line outputs: L+R balanced XLR & L+R link XLR
- Controls: Output level, phase switch, high pass x-over (output)
- Sub driver: 250mmØ (10")
- Voice coil: 50mmØ (2")
- Output power (rms): 300W
- Output power (max.): 500W
- Peak output: 1000W
- SPL (max.): 120dB
- Frequency response: 60Hz - 150Hz
- Dimensions: 431x407x338mm
- Weight: 16.23kg
| Specifications | |
|---|---|
| Country of Origin: | China |
