10mm x 135mm N-S Nylon Hammerfix Screws, 50 Pack - FISCHER FIXINGS
10mm x 135mm N-S Nylon Hammerfix Screws, 50 Pack - FISCHER FIXINGS
Regular price
£31.09 GBP
Regular price
Sale price
£31.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

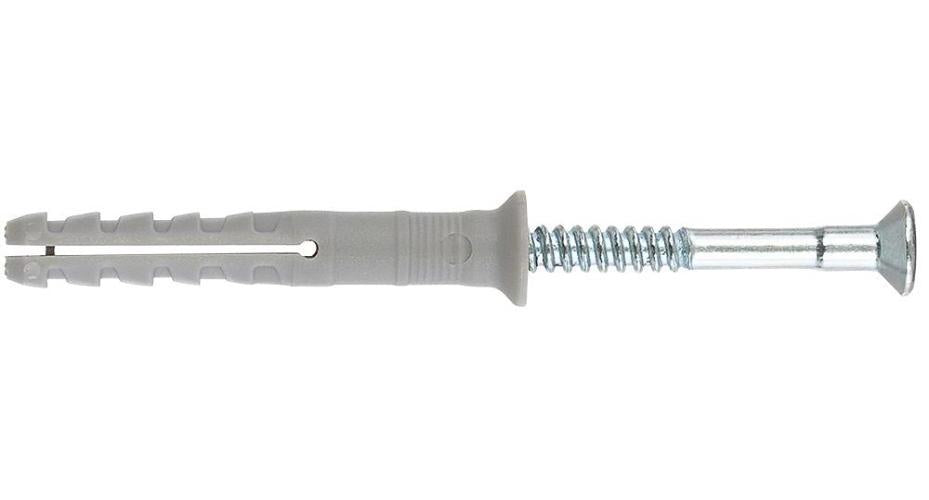

The Fischer Hammerfix N-S with countersunk head consists of a high-quality nylon plug and a zinc-plated nail screw. These are already pre-fitted for quick assembly. The Hammerfix is led through the component in the time-saving through-type installation. When driving in the nail screw, the fixing sleeve expands and anchors itself securely in the building material. The fischer Hammerfix N-S with countersunk head is ideal for fixing timber constructions in all building materials in internal areas.
Product Info
- The rapid hammerset installation reduces the amount of time required and allows for an economic series installation
- The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation
- Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling
- Drill Hole Diameter (d0): 10mm
- Effective Anchorage Depth (hef): 50mm
- Anchor Length (l): 135mm
- Min. Drill Hole Depth for Through Fixings (h2): 150mm
- Max. Fixture Thickness (tfix): 85mm
- Drive: PZ3
| Details | |
|---|---|
| Thread Size - Metric | 10mm |
| Head Type | Pozidriv |
| External Length | 135mm |
| Fastener Material | Nylon (Polyamide) |
| Fastener Plating | Zinc |
| Product Range | Fischer Fixings - Hammerfix Screws |
| Country of Origin: | Germany |
