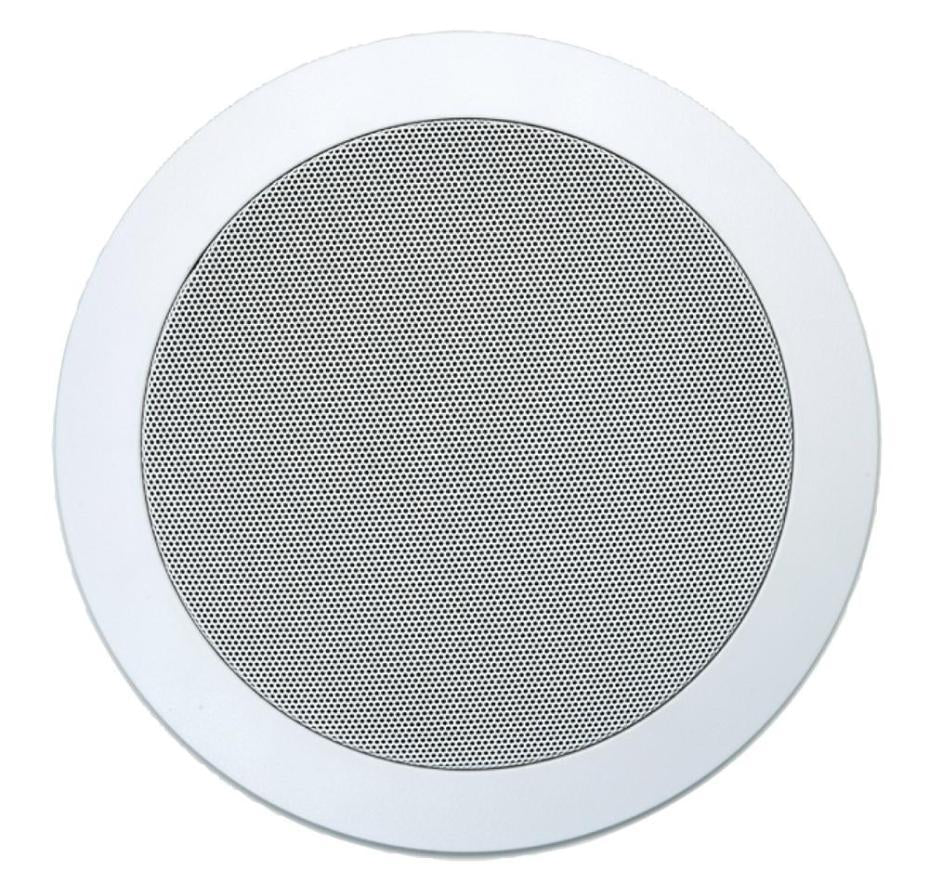

10W 5" Dual Cone Ceiling Speaker, Open Back 16R - CVS-C5W
10W 5" Dual Cone Ceiling Speaker, Open Back 16R - CVS-C5W
Regular price
£17.09 GBP
Regular price
Sale price
£17.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Cloud CVS Contractor series is a low-cost range of quality loudspeakers for flush in-ceiling installations. Ideal for background music and announcements in general public areas and buildings where good musical reproduction and high speech intelligibility are required. Constructed in lightweight ABS plastic with open back, infinite baffle characteristics. Connections are made via a multi-pin "Easy Connect" terminal block on a flying lead. This model features low impedance 16R signal routing at 10W.
Features
- Snap-on grille - easy to fit and remove
- Cutting template supplied
- Good musical quality and speech intelligibility
- Low impedance 16R - Max 20W
- Low profile back can for installation into ceiling voids with limited height
- "Easy Connect" terminal block simplifies installation
- Frequency response: 73Hz-20kHz
- Sensitivity (1W at 1m): 85dBA
- Power rating: 10W
- Cutout hole diameter: 169mm
- Grille type: painted steel
- Dimension (HxDia): 80x205mm
- Depth required above ceiling: 65mm
| Specifications | |
|---|---|
| Frequency Response Min | 73Hz |
| Frequency Response Max | 20kHz |
| External Height | 80mm |
| External Width | 205mm |
| External Depth | 0mm |
| Product Range | CLOUD Ceiling Speakers |
| Country of Origin: | China |
