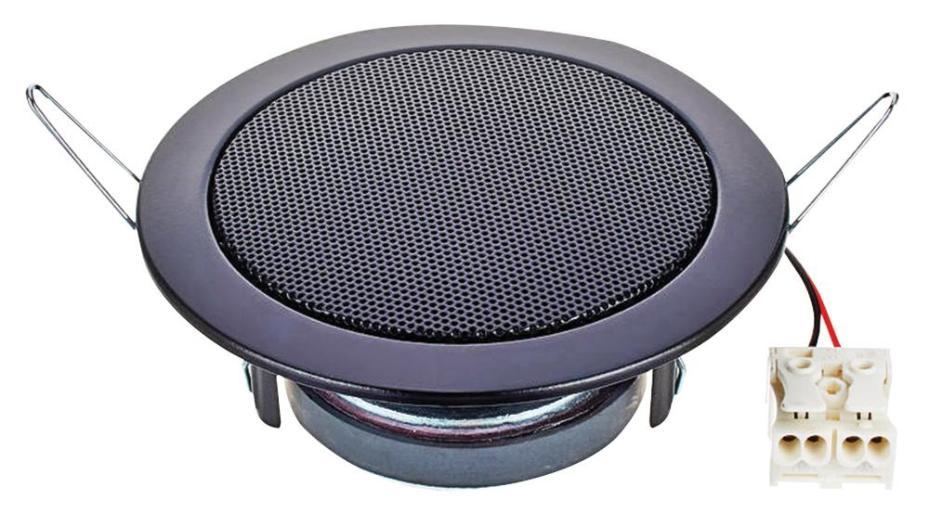

10W Ceiling Speaker 3.3" 8R, IP54 - DL 8OHM
10W Ceiling Speaker 3.3" 8R, IP54 - DL 8OHM
Regular price
£28.59 GBP
Regular price
Sale price
£28.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
8cm (3.3") ceiling mounted speaker with white metal cover (RAL 9010). Suitable for use in all types of hollow ceilings. Easy fitting in round cut-out using spring arms, electrical connection by spring-loaded terminal clips. A compact solution for home and professional use with good sound qualities. Suitable for hollow ceilings, for music and speech in shops, at home, hotels etc.
Features
- Moisturised cone
- Metal basket, non-corrodible
- Temperature & UV-resistant
- Ball-resistant
- Output power: 10W rms (max. 30W)
- Nominal impedance: 8R (DC resistance: 6.7R)
- Frequency response: 90Hz to 18kHz
- Mean SPL: 84dB (1Wat 1m) max. 90dB
- Resonant frequency: 190Hz
- Magnetic induction: 0.7T (flux 130μWb)
- Height of front pole-plate: 3mm
- Voice coil diameter: 20mm
- Dispersion: 112°
- Height of winding: 4mm
- Inductance of the voice coil: 0.48mH
- Effective piston area: 31cm2
- Mechanical Q factor: 2.72
- Electrical Q factor: 1.43
- Total Q factor: 0.94
- Cutout diameter: 93mm
- IP rating: IP54
- Operating temperature: -40 to +110°C - EN 60068-2-1 (-40°C for 96h) up to the standards of the Germanischer Lloyd
- Length of cable: 0.1m
- Dimensions (HxWxD): 105x105x38mm
- Weight: 330g
| Specifications | |
|---|---|
| Frequency Response Min | 90Hz |
| Frequency Response Max | 18kHz |
| External Height | 105mm |
| External Width | 105mm |
| External Depth | 38mm |
| Product Range | WHALE Ceiling Speakers |
| Country of Origin: | China |
