10W Ceiling Speaker 3.3" 8R Stainless, IP54 - DL8ES8OHM
10W Ceiling Speaker 3.3" 8R Stainless, IP54 - DL8ES8OHM
Regular price
£39.09 GBP
Regular price
Sale price
£39.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

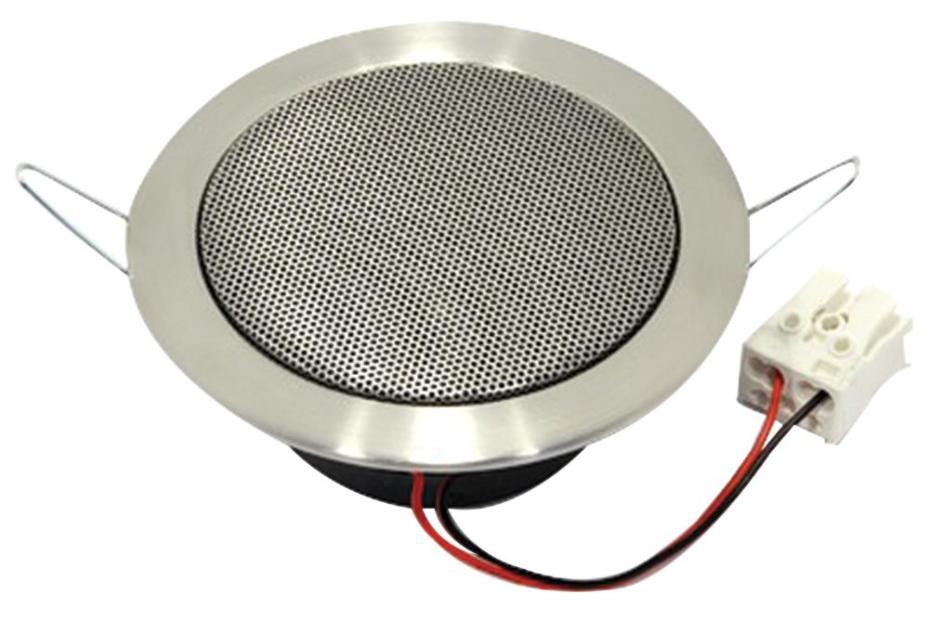

8cm (3.3") ceiling mounted speaker made of stainless steel with brushed finish. Suitable for use in all types of hollow ceilings. Easy fitting in round cut-out using spring arms, electrical connection by spring-loaded terminal clips. A compact solution for home and professional use with good sound qualities. Suitable for fitting in hollow ceilings, for music and speech in shops, at home, hotels etc.
Features
- Stainless steel basket, non-corrodible
- Temperature, moisture & UV-resistant
- Output power: 10W rms (max. 30W)
- Nominal impedance: 8R (DC resistance: 6.7R)
- Frequency response: 100Hz to 20kHz
- Mean SPL: 84dB (1Wat1m) max. 87dB
- Resonant frequency: 173Hz
- Magnetic induction: 0.7T (flux 130μWb)
- Height of front pole-plate: 3mm
- Voice coil diameter: 20mm
- Dispersion: 112°
- Height of winding: 4mm
- Inductance of the voice coil: 0.48mH
- Effective piston area: 31cm2
- Mechanical Q factor: 2.72
- Electrical Q factor: 1.43
- Total Q factor: 0.94
- Cutout diameter: 93mm
- IP rating: IP54
- Operating temperature: -40 to +110°C - EN 60068-2-1 (-40°C for 96h) up to the standards of the Germanischer Lloyd
- Length of cable: 0.1m
- Dimensions (HxWxD): 105x105x38mm
- Weight: 330g
| Specifications | |
|---|---|
| Frequency Response Min | 100Hz |
| Frequency Response Max | 20kHz |
| External Width | 105mm |
| External Depth | 38mm |
| Product Range | WHALE Ceiling Speakers |
| Country of Origin: | China |
