10W Oval Full Range Driver 4.7" 8R - FR 7.12,8
10W Oval Full Range Driver 4.7" 8R - FR 7.12,8
Regular price
£10.49 GBP
Regular price
Sale price
£10.49 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

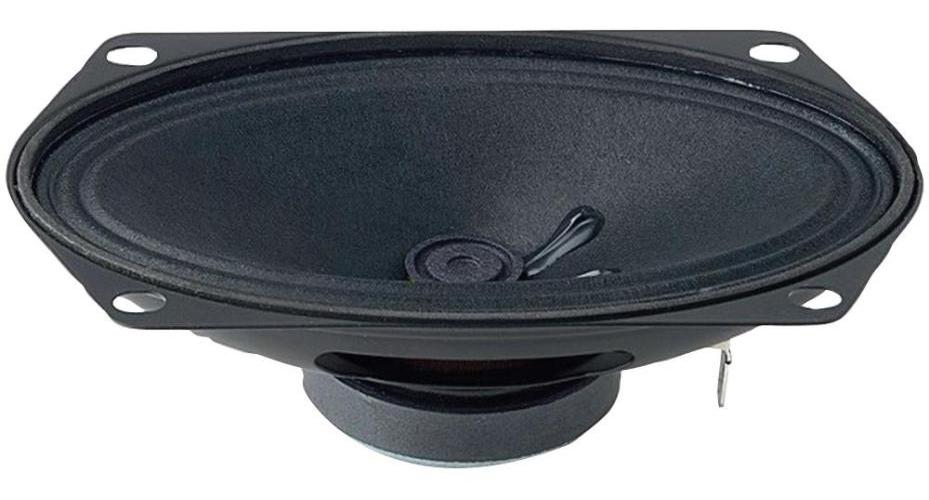

Oval 7x12cm (2.8" x 4.7") full range speaker with high efficiency and balanced frequency response. Well suitable for speech reproduction.
Features
- Paper membrane
- Metal basket
- Output power: 10W rms (max. 20W)
- Nominal impedance: 8R
- Frequency response: 150Hz to 18kHz
- Mean SPL: 90dB (1Wat 1m) max. 98dB
- Resonant frequency: 235Hz
- Terminal: 2.8x0.8mm
- Voice coil diameter: 15mm
- Height of winding: 5mm
- Cutout diameter (oval): 66x119mm
- Mounting holes distance: 65x90mm
- Operating temperature: -25 to +70°C
- Dimensions (HxWxD): 126x79x37mm
- Weight: 280g
| Specifications | |
|---|---|
| Driver Type | Full-range |
| External Diameter - Metric | 126mm |
| External Width - Metric | 79mm |
| Impedance | 8ohm |
| Power Rating Nom | 10W |
| Sound Level SPL | 90dBA |
| External Diameter - Imperial | 4.961" |
| External Width - Imperial | 3.11" |
| Frequency Response Min | 150Hz |
| Frequency Response Max | 18kHz |
| Speaker Shape | Oval with Rectangular Frame |
| Resonant Frequency | 235Hz |
| Speaker Mounting | Through Hole |
| Power Rating Max | 20W |
| External Length - Metric | 126mm |
| External Depth - Metric | 37mm |
| External Length - Imperial | 4.961" |
| External Depth - Imperial | 1.457" |
| Product Range | WHALE Ceiling Speakers |
| Country of Origin: | China |
