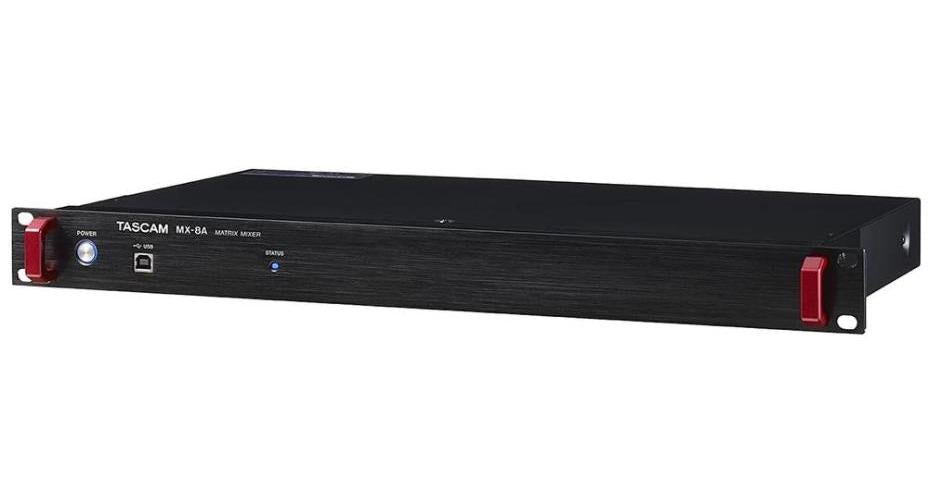

10x10 Matrix Mixer with DSP, 1U - MX-8A

10x10 Matrix Mixer with DSP, 1U - MX-8A

£1,017.59 GBP
£1,017.59 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

The MX-8A is a 10x10 matrix mixer with 8x mic/line inputs, 8x line outputs and stereo USB I/O compatible with software or cloud-based conferencing platforms. It offers powerful internal DSP mixing and routing plus multiple audio processing functions and is ideal for various applications including meeting rooms, huddle spaces, court rooms, restaurants, stores, banqueting rooms, etc. DSP includes a compressor, 4 band parametric EQ and auto level control for each input. The output section features a 10 band EQ with high/low-pass filter, delay and limiter function per output, all of which can be adjusted and saved to any of the 50x scene memories, along with the mixing/routing settings. To make the audio even clearer, automatic ducking and ambient noise compensator are also available. The MX-8A can be controlled via 2x software applications available for Mac, Windows, iOS and Android devices. Using Tascam MX Connect installers can quickly and easily configure the MX-8A and then assign appr

Features

  • Inputs: 8x Euroblock, USB (stereo L/R)
  • Outputs: 8x Euroblock, USB (stereo L/R)
  • USB-B audio interface mode allows to record audio or play background music with a computer
  • Control via RS-232C or RS-485
  • Network Ethernet RJ45 connector
  • Sampling: 44.1/48kHz, 16/24-bit
  • THD: <0.005 %
  • SNR: 106dB
  • Frequency response: 20Hz to 20kHz
  • 5x Different reference levels available to adapt to virtually any application in consumer, professional or broadcast environments (selectable via software)
  • Powerful DSP mixer (controllable via software): phantom power, phase, sensitivity, level control, EQ, mute, fader, matrix, ducking, ANC, routing, limiter, delay
  • Up to 50x scene presets can be saved
  • Timer event function allows presets to be switched at specific times
  • Software apps: Tascam MX Connect for system integrators, Tascam EZ Connect for end users
  • Allows audio to be recorded/played back via Windows Media Player, iTunes or DAW applications
  • Power supply: 100 to 240V AC, 50/60Hz
  • Dimensions (HxWxD): 45x483x304mm
  • Weight: 3.0kg

Specifications
Product Range TASCAM Matrix Mixers
Plug Type UK

EAN:
Manufacturer Part Number:
