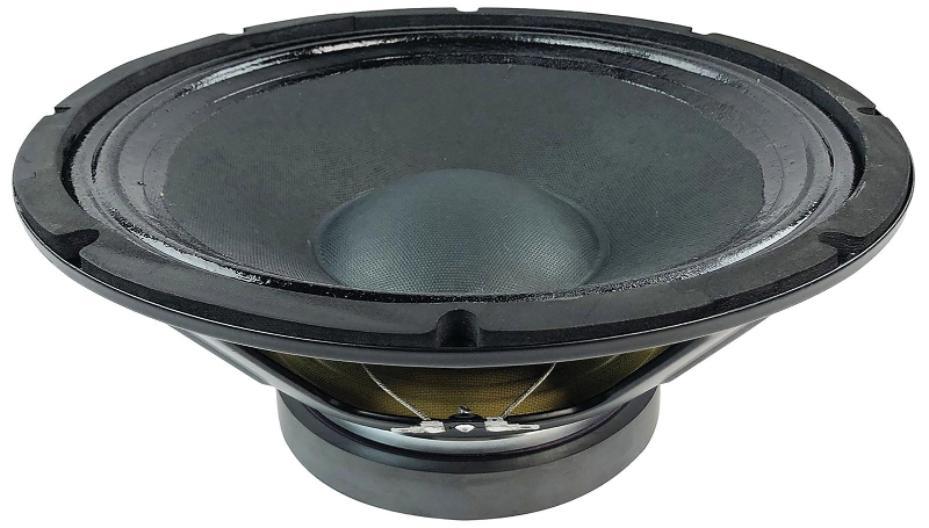

12" 400W Subwoofer Driver 8R, 902.123UK - SUBCASA-12B
12" 400W Subwoofer Driver 8R, 902.123UK - SUBCASA-12B
Regular price
£72.09 GBP
Regular price
Sale price
£72.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
This is a 12" subwoofer driver with high efficiency and balanced frequency response in low range, with slightly increased middle frequency range up to 2kHz. It is fitted with reinforced paper cone and steel frame basket. Especially suitable as a replacement for CASA series passive cabinets.
Features
- 2.5" Voice coil
- Magnet: 50oz
- Output power: 400W rms (700W max.) at 8R
- Frequency response: 45Hz to 2kHz
- Sensitivity: 96dB
- Reinforced paper cone with steel frame basket
- Dimensions (HxDia): 160x310mmØ
- Weight: 4.8kg
| Specifications | |
|---|---|
| Driver Type | Subwoofer |
| External Diameter - Metric | 310mm |
| Impedance | 8ohm |
| Power Rating Nom | 400W |
| Sound Level SPL | 96dBA |
| External Diameter - Imperial | 12" |
| Frequency Response Min | 45Hz |
| Frequency Response Max | 2kHz |
| Speaker Shape | Round |
| Speaker Mounting | Through Hole |
| Power Rating Max | 700W |
| External Depth - Metric | 160mm |
| External Depth - Imperial | 6.5" |
| Product Range | Citronic Subwoofer Drivers 8R |
| Country of Origin: | China |
