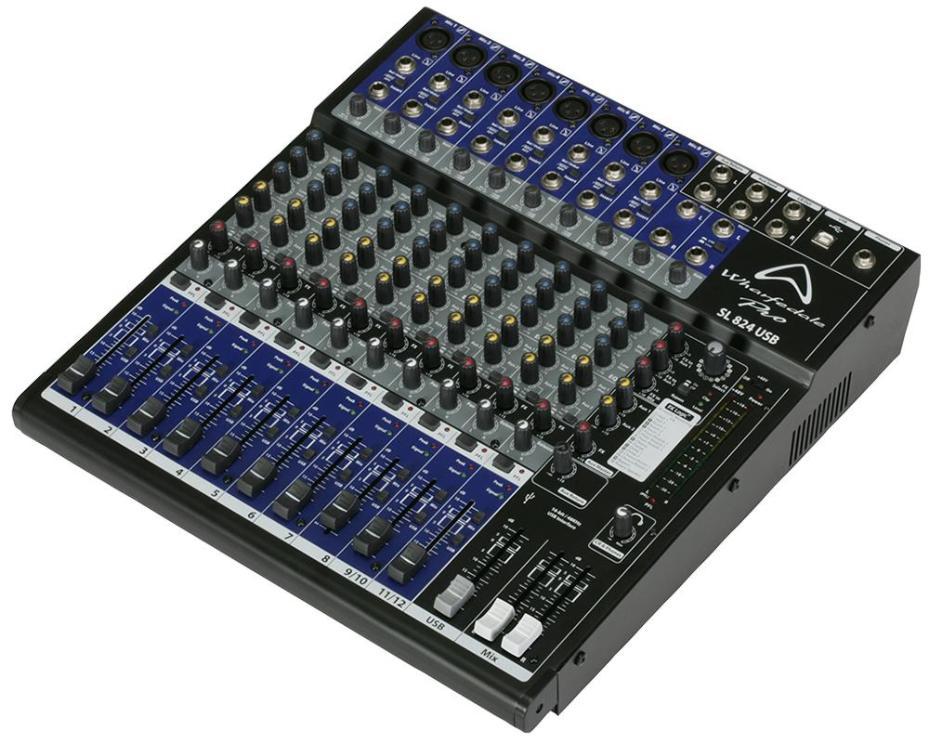

12-Channel Mixing Desk with DSP & USB - SL824USB
12-Channel Mixing Desk with DSP & USB - SL824USB
Couldn't load pickup availability
Designed to cater for a wide range of mid format mixing duties, SL Series mixers include many features suited to live sound and home studio applications. This model feature a high-quality class-compliant 2-input, 2-output 16-bit/48KHz USB interface matched to a flexible record bus and dedicated return channel, creating a system that is great for live and home recording. An ultra musical 3-band EQ is available on all channels, with an additional high pass filter on the mono channels. A built-in FX processor with 16x presets gives you unlimited creative potential and is supplemented by a dedicated FX send and 2 auxiliaries.In recent years the introduction of USB connectivity has ushered a new appreciation of the capabilities of computer audio, helping to fuse both digital and analogue and open up endless possibilities for the recording musician. The USB connector enables computers with USB connectivity to interface directly with the mixer for full duplex recording and playback.
Features
- Inputs: 12 (8x mono, 2x stereo)
- Mic Inputs: 8
- 2xIN/2xOUT full duplex 16-bit 48KHz USB interface
- DSP: built-in digital FX with dedicated send for 16x effects: Halls, Rooms, Platereverbs, Chorus, Flanger, Delays, Chorus/Rooms, Bypass, Rotaryspeaker
- Studio grade phantom powered microphone pre-amps
- Dedicated USB recording bus
- THD: <1% at output
- Frequency Responce: 20Hz - 20kHz (+1/-3dB)
- Pan and balance controls
- Signal to Noise Ratio: 78dB
- Output Levels: Max +26.5dB
- Ultra musical 3-band EQ with high pass filters
- USB/SD: MP3 Audio playback
- Control room and headphone outputs
- Master outputs with XLR and TRS connectors
- PFL for all channels
- 2x AUX sends, Stereo AUX return with level control
- Power Requirements: 100V-240V AC
- Dimension (HxWxD): 80x400x369mm
- Weight: 5.2 kg
| Specifications | |
|---|---|
| Product Range | WHARFEDALE SL Series Mixing Desks |
| Plug Type | UK |
| Country of Origin: | China |
