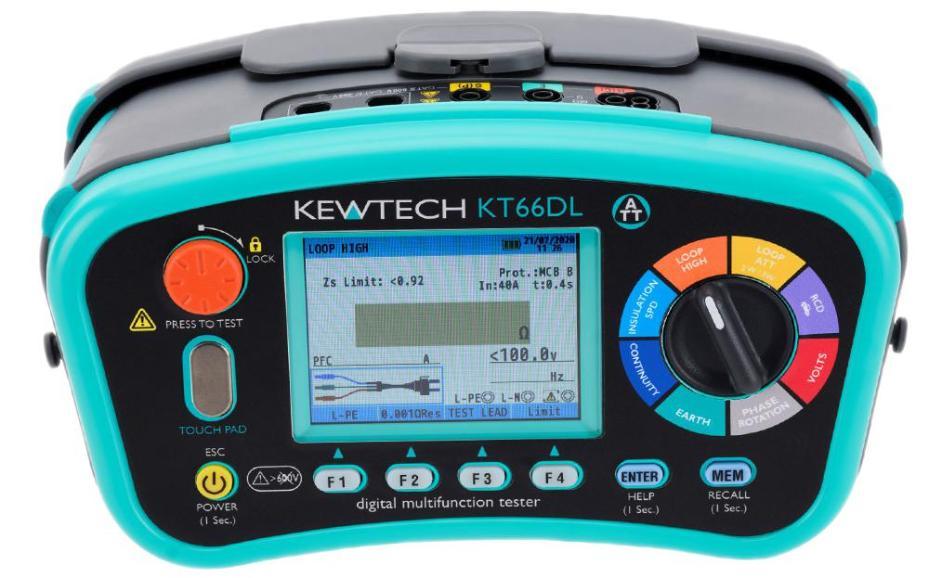

12-in-1 Multifunction Tester, 1kV, IP40 - KT66DL
12-in-1 Multifunction Tester, 1kV, IP40 - KT66DL
Regular price
£1,422.19 GBP
Regular price
Sale price
£1,422.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The KT66DL is Kewtech's ultimate MFT. Designed specifically for the UK and covers EV charging installations.
Features
- Large colour dot matrix screen
- Established easy to use interface with one rotary dial and four function keys
- Two high current loop options: 25A 0.001 Ohm resolution and 6A, 0.01 Ohm resolution
- Two low current loop options: 3 wire and 2 wire
- EVSE loop option
- EVSE 6mA, DC ramp and tripping time test
- Insulation test function with PI
- Surge protection device test
- Comprehensive RCD function including type EV & B and variable RCD test
- Earth resistance 3 and 2 wire options
- PAT function including download
- G7 test leads
- Max Zs tables for current and old standards
- Phase rotation
- Advanced memory
- IP40 rated
| Specifications | |
|---|---|
| Product Range | Kewtech - KT6x Series |
| Voltage Measure DC Max | 1kV |
| Voltage Measure AC Max | 1kV |
| Insulation Resistance Min | 0.001ohm |
| Insulation Resistance Max | 2Gohm |
| Product Contents: | KT66DL multifunction tester, ACC064SP G7 test lead with remote test button, ACC065 G7 test lead set, 8x AA batteries, instruction manual, end-of-line calibration certificate, KAMP12 mains lead, test lead pouch, and soft carry case |
| Country of Origin: | Japan |
