12-Pole Plug & Socket Terminal Block, 450VAC, 24A, 8mm Pitch, Polyamide PA6.6 - HY431/12 NYSP
12-Pole Plug & Socket Terminal Block, 450VAC, 24A, 8mm Pitch, Polyamide PA6.6 - HY431/12 NYSP
Regular price
£6.29 GBP
Regular price
Sale price
£6.29 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

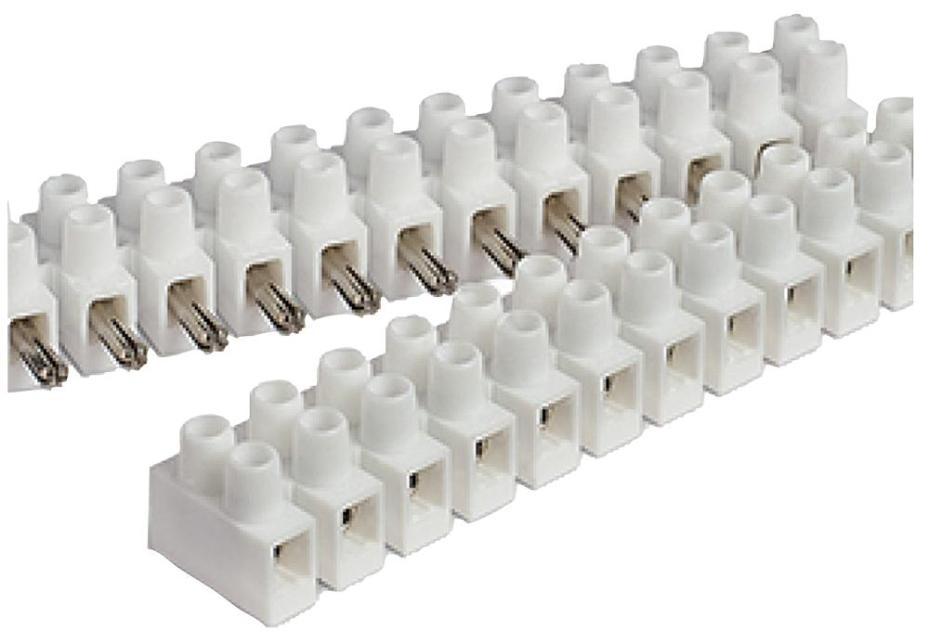

The HY431/12 NYSP from Hylec is a 12-Pole plug and socket terminal block constructed from natural polyamide PA6.6. The HY431/12 NYS has an 8mm pitch and a rating of 24A at 450VAC.
Product Info
- UL94 rating: UL94V2
- Minimum conductor size: 2.5mm2
- Maximum voltage: 450VAC
- Maximum current: 24A
- Pitch: 8mm
- Dimensions (LxWxH): 95.2x16.3x15mm
- Diameter: 2.8mm
| Details | |
|---|---|
| Pitch Spacing | 8mm |
| No. of Positions | 12Ways |
| Conductor Area CSA | 2.5mm2 |
| Wire Connection Method | Screw |
| Rated Current | 24A |
| Rated Voltage | 450V |
| Product Range | HY431/12 Series |
| Country of Origin: | Italy |
