12-Pole Plug & Socket Terminal Block, 450VAC, 28A, 10mm Pitch, Polypropylene - HY433/12 PLPSP
12-Pole Plug & Socket Terminal Block, 450VAC, 28A, 10mm Pitch, Polypropylene - HY433/12 PLPSP
Regular price
£8.59 GBP
Regular price
Sale price
£8.59 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

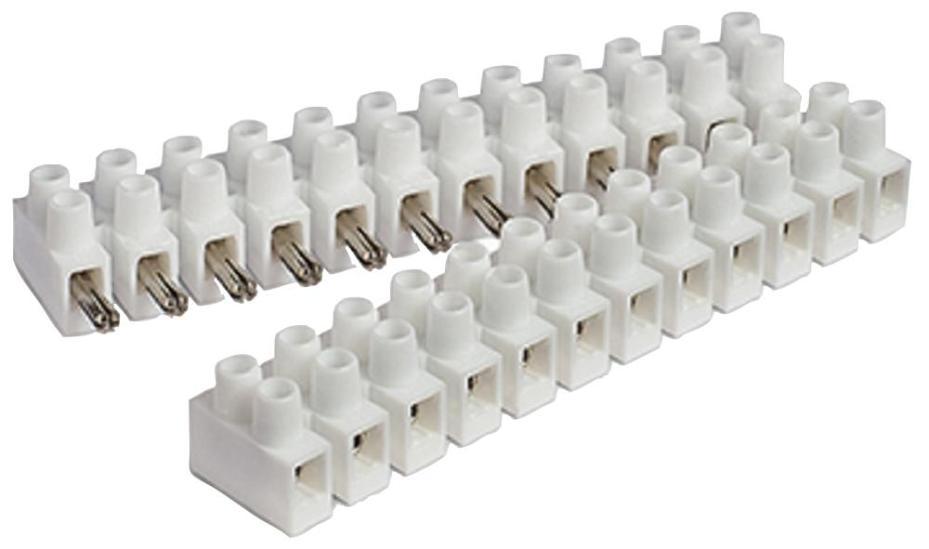

The HY433/12 PLPSP from Hylec is a 12-Pole plug and socket terminal block constructed from natural polypropylene. The HY433/12 PLPSP has an 10mm pitch and a rating of 28A at 450VAC.
Product Info
- UL94 rating: UL94V2
- Minimum conductor size: 4mm2
- Maximum voltage: 450VAC
- Maximum current: 28A
- Pitch: 10mm
- Dimensions (LxWxH): 116.5x20.2x16.6mm
- Diameter: 3.4mm
| Details | |
|---|---|
| Pitch Spacing | 10mm |
| No. of Positions | 12Ways |
| Conductor Area CSA | 4mm2 |
| Wire Connection Method | Screw |
| Rated Current | 28A |
| Rated Voltage | 450V |
| Product Range | HY433/12 Series |
| Country of Origin: | Italy |
