12 Way Anode Diode 35mm DIN Rail Module - CIM/12W-DIOCA
12 Way Anode Diode 35mm DIN Rail Module - CIM/12W-DIOCA
Regular price
£55.39 GBP
Regular price
Sale price
£55.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

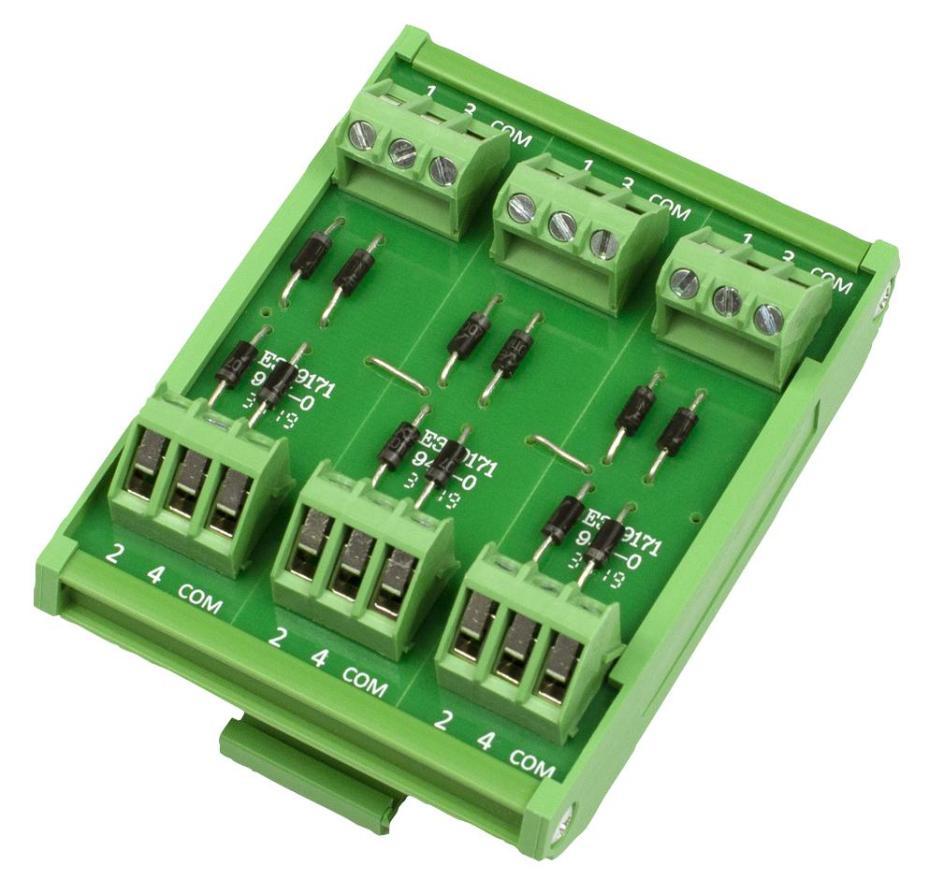

The CIM/12W-DIOCA from Camden Boss is a 12-Way anode diode DIN rail module providing a quick and compact method of providing reverse voltage protection, back emf protection for inductive loads, indicator test and functions.
Product Info
- 12 individual anode diodes (1N4007) for 35mm DIN rails
- Protects against return voltage to circuits
- Low profile
- Terminal marked
- 45° cable entry for easy access
- Characteristics of IN4007 diodes: 1000V Peak 250V at 1A
- Cable entry: 0.6 - 2.5mm2
- Terminal screws: M2.5
- Strip length: 6mm
- Maximum terminal torque: 0.5Nm
- Dimensions (LxWxH): 82x62x38mm
| Details | |
|---|---|
| Rated Current | 1A |
| Rated Voltage | 250V |
| Product Range | CIM Series |
| Country of Origin: | Great Britain |
