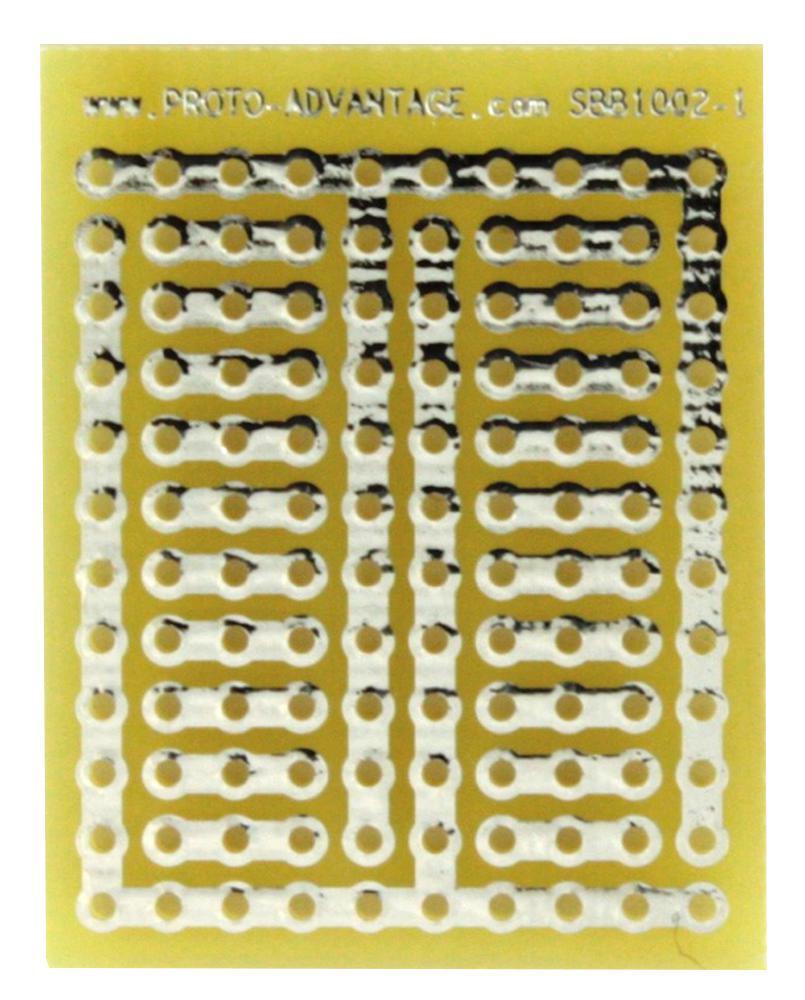

120 Point 2 Column Solder Breadboard - SBB1002-1
120 Point 2 Column Solder Breadboard - SBB1002-1
Regular price
£3.09 GBP
Regular price
Sale price
£3.09 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
High quality lead-free, 2 column solder-in breadboard with HASL finish. Fully RoHS 3 & REACH compliant.
Features
- 2 Column layout with 10 rows (120 holes total)
- 1mm (40mils) hole diameter
- Holes accept 25 mil square wire wrap posts
- Two power channels
- Fully RoHS 3 & REACH compliant
- FR-4 UL94V-0 PCB construction with max. reflow temperature up to 260°C
- Operating temperature range: -40°C to +130°C
- Dimensions: 27.94x35.56mm
| Specifications | |
|---|---|
| Board Type | Breadboard |
| Board Material | Epoxy Glass Composite |
| Hole Diameter | 1mm |
| External Height | 35.56mm |
| External Width | 27.94mm |
| Country of Origin: | Canada |
