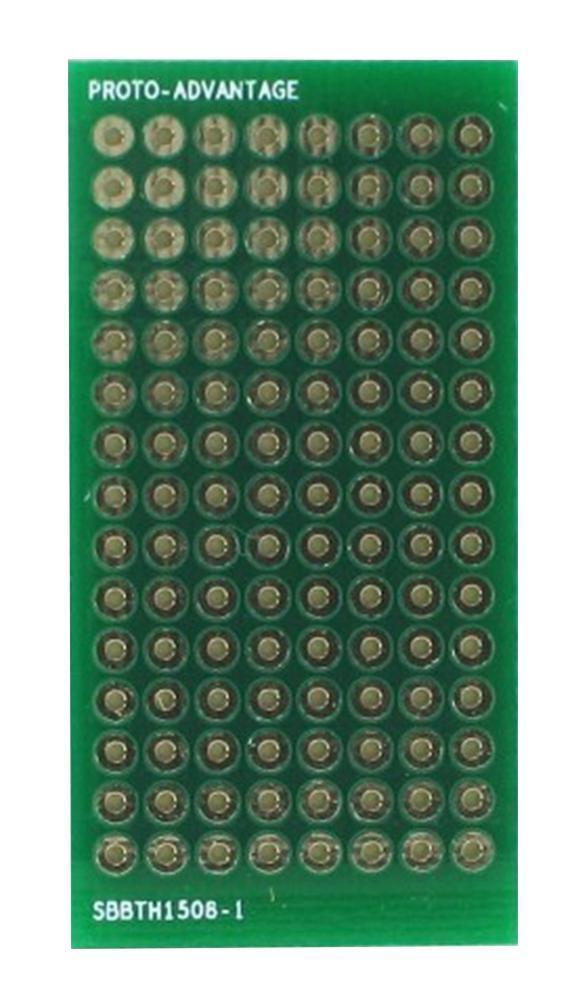

120 Point Through Hole Solder Breadboard - SBBTH1508-1
120 Point Through Hole Solder Breadboard - SBBTH1508-1
Regular price
£3.39 GBP
Regular price
Sale price
£3.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
High quality lead-free, through hole solder-in breadboard. Hole pitch of 2.54mm (0.1") center-to-center. Pads are 2.0mm (0.079") round in size. Space between pads is 0.54mm (0.021").Fully RoHS 3 & REACH compliant.
Features
- 15 Row layout with 8 columns (120 holes total)
- 1mm (40mils) hole diameter
- Holes accept 25 mil square wire wrap posts
- Fully RoHS 3 & REACH compliant
- FR-4 UL94V-0 PCB construction with max. reflow temperature up to 260°C
- Operating temperature range: -40°C to +130°C
| Specifications | |
|---|---|
| Board Type | Breadboard |
| Board Material | Epoxy Glass Composite |
| Hole Diameter | 1mm |
| External Height | 44.5mm |
| External Width | 22.9mm |
| Board Thickness | 1.6mm |
| Country of Origin: | Canada |
