12MHz Crystal, SMD, 3.2mm x 2.5mm, 10ppm, 10pF - 7M-12.000MEEQ-T
12MHz Crystal, SMD, 3.2mm x 2.5mm, 10ppm, 10pF - 7M-12.000MEEQ-T
Regular price
£2.39 GBP
Regular price
Sale price
£2.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

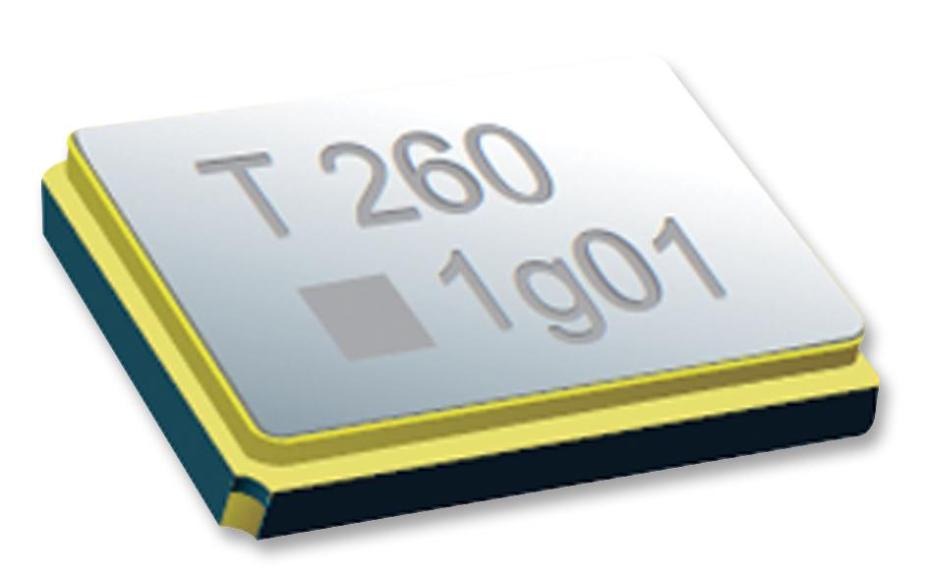

The 7M-12.000MEEQ-T is a 3.2 x 2.5 x 0.7mm SMD Seam Sealing Crystal with high precision and high frequency stability.
Features
- Extremely Small SMD Type Crystal Unit
- Extremely Good for Reducing EMI Effect
- Ageing ±3ppm Per Year Max
| Specifications | |
|---|---|
| Frequency Nom | 12MHz |
| Crystal Case | SMD, 3.2mm x 2.5mm |
| Frequency Stability + / - | 10ppm |
| Load Capacitance | 10pF |
| Frequency Tolerance + / - | 10ppm |
| Product Range | 7M |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | China |
