12MHz Crystal, SMD, 5mm x 3.2mm, 50ppm, 18pF - ABM3B-12.000MHZ-B2-T

12MHz Crystal, SMD, 5mm x 3.2mm, 50ppm, 18pF - ABM3B-12.000MHZ-B2-T

£2.19 GBP
£2.19 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

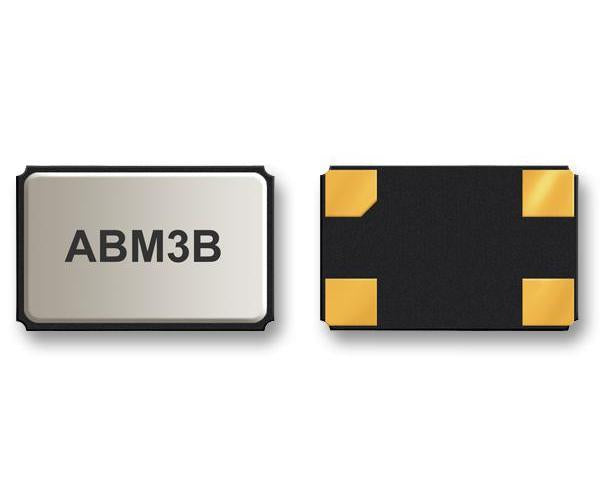

The ABM3B-12.000MHZ-B2-T is a 5.0 x 3.2 x 1.1mm Ceramic SMD Crystal Oscillator.

Features

  • Fundamental Mode
  • Tight Stability
  • Suitable for Reflow
  • Ceramic Package and Metal Lid Assures High Precision and Reliability
  • Seam Sealing
  • Ageing ±5ppm Per Year Max
  • 500MR Insulation Resistance

Specifications
Frequency Nom 12MHz
Crystal Case SMD, 5mm x 3.2mm
Frequency Stability + / - 50ppm
Load Capacitance 18pF
Frequency Tolerance + / - 20ppm
Product Range ABM3B Series
Operating Temperature Min -20°C
Operating Temperature Max 70°C
Country of Origin: Japan

EAN:
Manufacturer Part Number:
