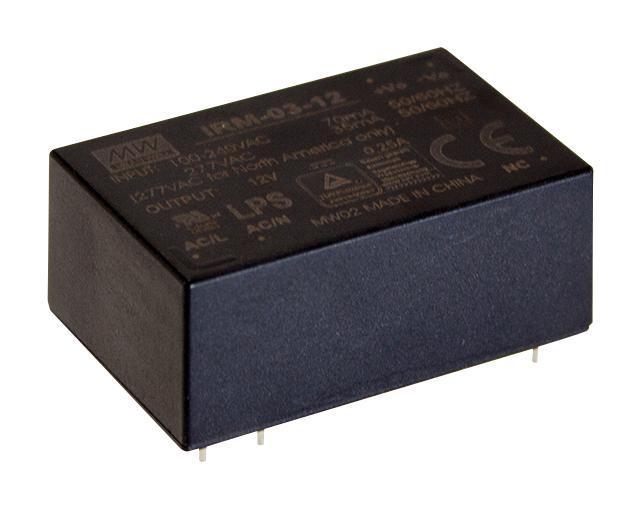

12V, 250mA, 3W PCB Mount AC to DC Power Supply - IRM-03-12
12V, 250mA, 3W PCB Mount AC to DC Power Supply - IRM-03-12
Regular price
£13.79 GBP
Regular price
Sale price
£13.79 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
IRM-03 series is a 3W miniature AC to DC module type power supply allows a universal input voltage range from 85VAC to 305VAC.
Features
- No load power consumption <0.075W
- Comply with EN55032 class B without any additional components
- Short circuit/overload/overvoltage protections
- Cooling by free air convection
- Isolation ClassII incorporating the built-in EMI filtering components
- High reliability
- Input Voltage: 85-305VAC
| Specifications | |
|---|---|
| Power Supply Approvals | ITE |
| No. of Outputs | 1 Output |
| Output Power Max | 3W |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 1 | 250mA |
| Power Supply Output Type | Fixed |
| Input Voltage VAC | 85V AC to 305V AC |
| Width | 24mm |
| Height | 15mm |
| Depth | 37mm |
| Product Range | IRM-03 Series |
| Country of Origin: | China |
