12V, 4.2A, 50.4W, Enclosed Power Supply - LRS-50-12
12V, 4.2A, 50.4W, Enclosed Power Supply - LRS-50-12
Regular price
£27.39 GBP
Regular price
Sale price
£27.39 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

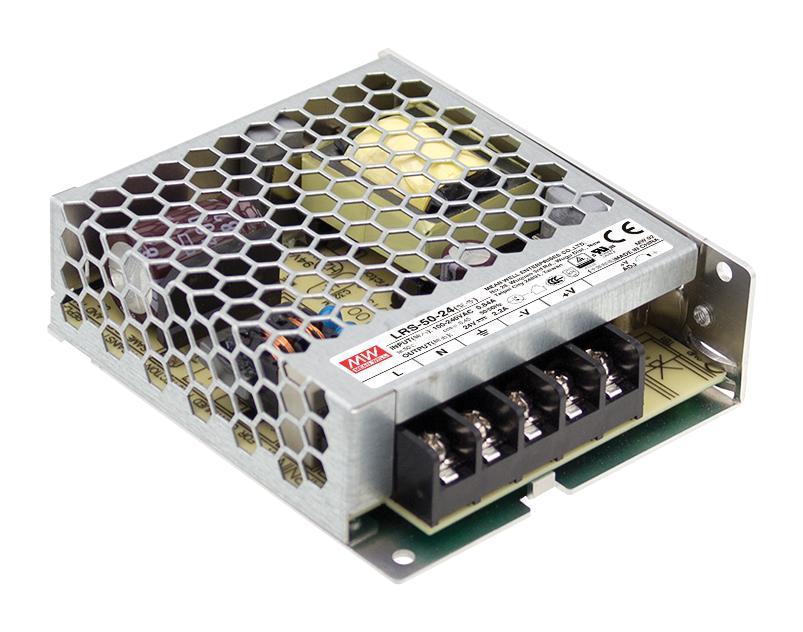

LRS-50 series 50W single output enclosed type power supply with 30mm of low profile design. Adopting the input of 85VAC or 264VAC. It features high efficiency up to 90%, long life and high reliability.
Features
- Withstand 300VAC surge input for 5sec
- No load power consumption<0.2W
- Miniature size and 1U low profile
- High operating temperature up to 700C
- Short-circuit/overload/overvoltage protection
- Cool by free air convection
- Compliance to IEC/EN 60335-1 and IEC/EN61558-1,2-16 for household appliances
- LED indicator for power on
- Dimension is 99mm x 82mm x 30mm
| Specifications | |
|---|---|
| Power Supply Approvals | ITE & Household |
| No. of Outputs | 1Outputs |
| Output Power Max | 50.4W |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 1 | 4.2A |
| Input Voltage VAC | 85V AC to 264V AC |
| Power Supply Output Type | Adjustable, Fixed |
| Product Range | LRS-50 Series |
| Country of Origin: | China |
