12V, 50A, 600W Enclosed Switching Power Supply - TGR600-12
12V, 50A, 600W Enclosed Switching Power Supply - TGR600-12
Regular price
£96.69 GBP
Regular price
Sale price
£96.69 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

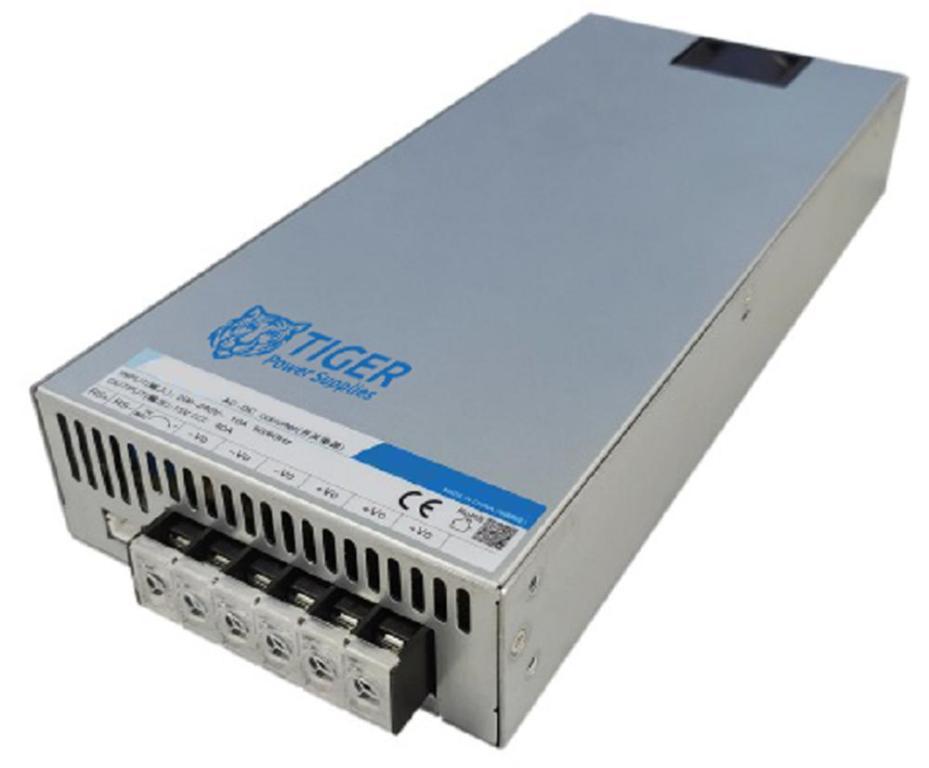

The TGR600-12 from Tiger Power Supplies is a 600W enclosed switching power supply rated at 12V DC / 50A.
Features
- Input voltage range: 176V - 264V AC or 240V - 373V DC
- Output voltage range: 10 to 13.5V
- Efficiency at 230V AC (Typical): 85%
- Maximum capacitive load: 3000uF
- Accepts AC or DC input (dual-use of same terminal)
- Operating ambient temperature range: -30°C to 60°C
- Compact size with a low 1U profile
- LED indicator for power on
- Operating up to 5000m altitude
- Over-temperature protection, output short circuit, overcurrent, over-voltage protection
- Safety according to IEC/EN/UL62368, GB4943
- Withstand 300V AC surge input for 5s
- Built-in DC fan
- Remote sense function
- Dimensions: 267.3x106x40mm
| Specifications | |
|---|---|
| No. of Outputs | 1Outputs |
| Output Power Max | 600W |
| Output Voltage - Output 1 | 12V |
| Output Current - Output 1 | 50A |
| Input Voltage VAC | 176V AC to 264V AC |
| Power Supply Output Type | Fixed |
| Product Range | TGR600-xx |
| Country of Origin: | China |
