12x2 HMDI/VGA/Audio Presentation Switch 4K with Scaling - SY-MSU-121
12x2 HMDI/VGA/Audio Presentation Switch 4K with Scaling - SY-MSU-121
Couldn't load pickup availability

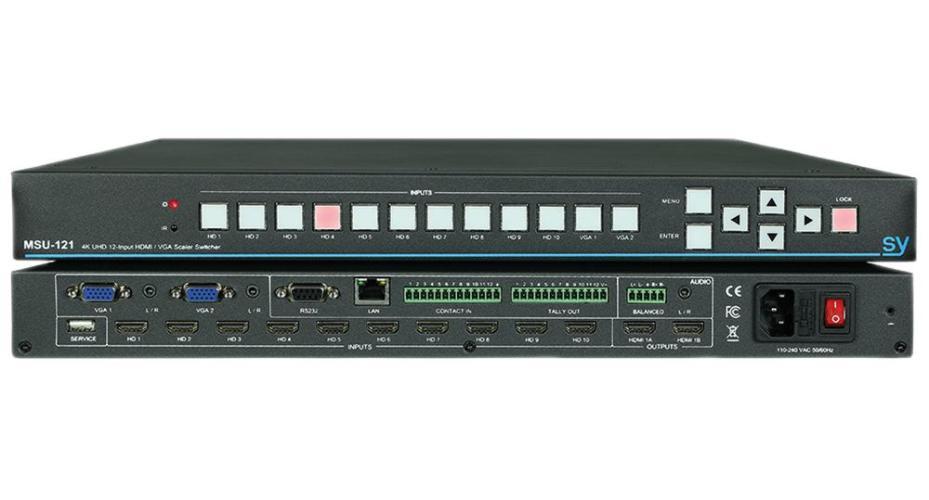

The SY-MSU-121 is a multi-format presentation switch with 12x inputs and 2x scalable HDMI outputs. It has 10x HDMI inputs capable of accepting a wide range of resolutions up to 4K. 2x VGA + audio input ports for support of legacy devices. Any input can be selected to output to the dual HDMI outputs (mirrored). Each input can be scaled to output at maximum 1080p ensuring the connected device receives an optimal signal resolution. Audio can be de-embedded on balanced or 3.5mm TRS jack. This can then be sent to an amplifier to provide audio to the speakers. The MSU-121 also has picture management featurtes (colour, brightness, contrast), noise reduction, HDCP and EDID management. This unit is a cost effective 4K presentation switch and can accommodate a variety of installations. A smart choice for education and corporate environments.
Features
- Inputs: 10x HDMI up to 4K UHD, 2x VGA + Audio 3.5mm TRS jack -up to 1920x1200p
- Outputs: 2x HDMI mirrored, scalable up to 1080p
- De-embedded audio
- HDMI/HDCP1.4 compliant
- EDID Management
- OSD menu for easy and flexible configuration
- Control: LAN, RS232, IR, contact closure, PC App
- All HDMI resolutions to 3840x2160p 30Hz 4:4:4 or 3840x2160p 60Hz 4:2:0
- Bandwidth: 10.2Gbps
- Power supply: 110 to 240V AC
- Dimensions (HxWxD): 44x430x220mm
- Weight: 3.0kg
| Specifications | |
|---|---|
| Product Contents: | 1x SY-MSU-121 unit, 2x Rack mounting brackets (already fitted), 1x 5 way terminal connector, 2x 13 way terminal connector, 1x User Manual, 1x PSU (IEC C13) |
| Country of Origin: | China |
