150W DC Electronic Load with Short Mode Function to Simulate Shorts - B&K PRECISION
150W DC Electronic Load with Short Mode Function to Simulate Shorts - B&K PRECISION
Regular price
£747.89 GBP
Regular price
Sale price
£747.89 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

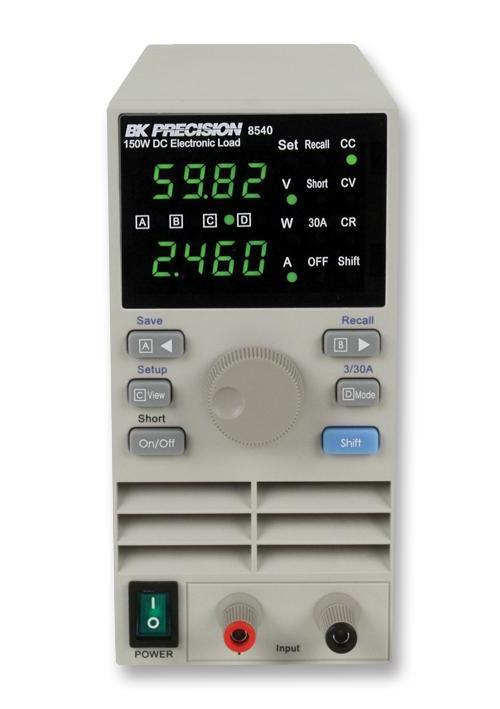

The 8540 DC electronic load is a very compact, economically priced instrument that is at home on both the bench and the production floor. Though this is an instrument in a small package, it can reliably test a 5 volt power supply to 30 amps and do it continuously. The load can operate in CC, CV or CR mode while voltage/current or resistance/power values are measured and displayed in real time, making it well suited to test a variety of DC power sources. The 8540's performance is comparable to most full size bench DC electronic loads, yet it does the job at half the price and takes up half the space on your bench.
Features
- Operates between 0-60 VDC, 1 mA-30 A (150 W maximum)
- Easy operation
- Bright, easy-to-read display
- Very compact and light weight
- Two current ranges: 3 A (1 mA resolution) and 30 A (10 mA resolution)
- Constant current (CC), constant resistance (CR) and constant voltage (CV) operation
- Over-current and over-voltage protection
- Short mode to simulate shorts
- Save up to 400 instrument settings
| Specifications | |
|---|---|
| Power Rating | 150W |
| DC Load Type | Adjustable |
| Operating Voltage Min | 0V |
| Operating Voltage Max | 60V |
| Operating Current Max | 30A |
| Manufacturer Warranty | 1 Year |
| Product Contents: | User manual, power cord |
| Important Product Info: | In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details. |
| Country of Origin: | China |
