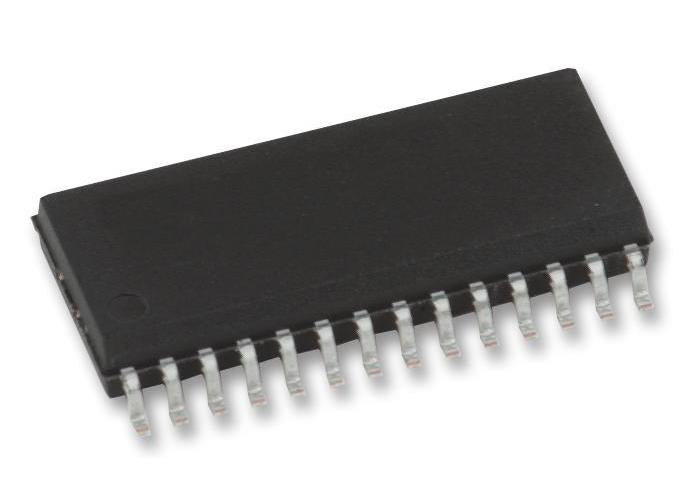

16 Bit I/O Expander with Serial Interface, 16 Bit, 1.7MHz, I2C, 1.8V, 5.5V, SOIC - MCP23017T-E/SO
16 Bit I/O Expander with Serial Interface, 16 Bit, 1.7MHz, I2C, 1.8V, 5.5V, SOIC - MCP23017T-E/SO
Regular price
£3.19 GBP
Regular price
Sale price
£3.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- 16 Bit Remote Bidirectional I/O Port:
- I/O pins default to input
- 3 Hardware address pins to allow up to 8 Devices on the bus
- Configurable Interrupt Output Pins:
- Configurable as active high, active low or open drain
- INTA and INTB can be configured to operate independently or together
- Configurable Interrupt Source:
- Interrupt on change from configured register defaults or pin changes
- Polarity inversion register to configure the polarity of the input port data
- External reset input
- Low Standby Current: 1uA
- Operating Voltage:
- 1.8V / 2.7V / 4.5V to 5.5V at -40°C to +85°C
| Specifications | |
|---|---|
| Chip Configuration | 16bit |
| Bus Frequency | 1.7MHz |
| IC Interface Type | I2C |
| Supply Voltage Min | 1.8V |
| Supply Voltage Max | 5.5V |
| Interface Case Style | SOIC |
| No. of Pins | 28Pins |
| No. of I/O's | 16I/O's |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | Thailand |
