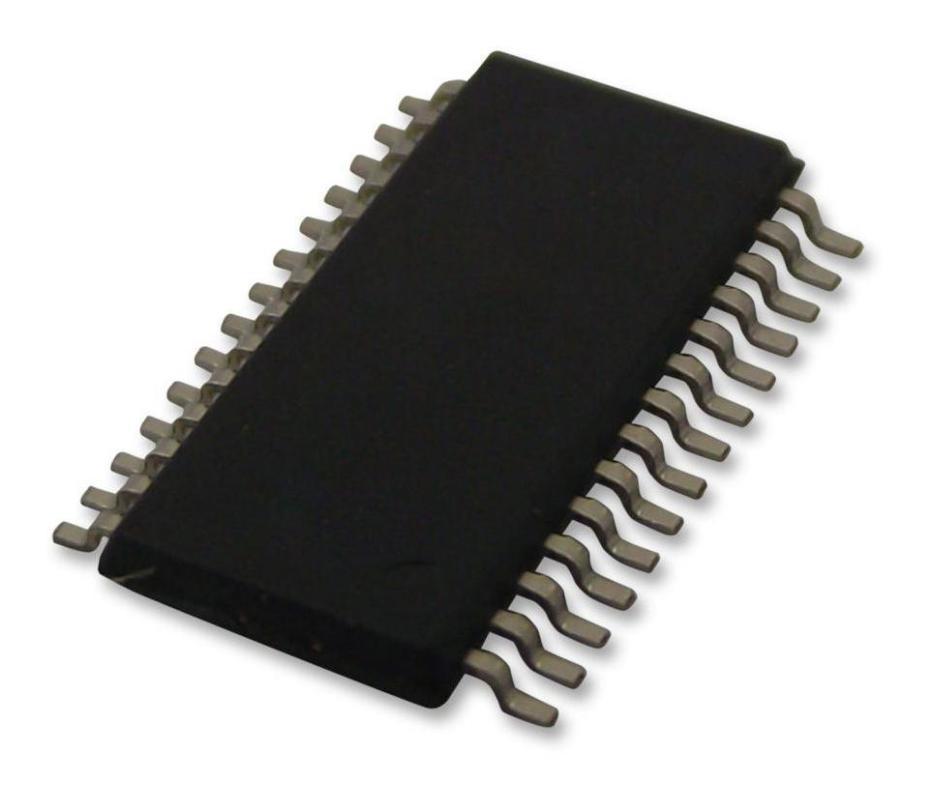

16 Bit I/O Expander with Serial Interface, 16Bit, 1.7MHz, I2C, 1.8V 5.5V SSOP - MCP23017T-E/SS
16 Bit I/O Expander with Serial Interface, 16Bit, 1.7MHz, I2C, 1.8V 5.5V SSOP - MCP23017T-E/SS
Regular price
£3.19 GBP
Regular price
Sale price
£3.19 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Features
- 16 Bit Remote Bidirectional I/O Port:
- I/O pins default to input
- Three hardware address pins to allow Up to eight devices On the Bus
- Configurable as active-high, active-low or open-drain
- INTA and INTB can be configured to operate independently or together
- Configurable Interrupt Source:
- Interrupt-on-change from configured register defaults or pin changes
- Polarity inversion register to configure the polarity of the input port data
- External reset input
- Low standby current: 1uA (max.)
- Operating Voltage: 1.8V / 2.7V / 4.5V to 5.5V at -40°C to +85°C
| Specifications | |
|---|---|
| Chip Configuration | 16bit |
| No. of Bits | 16bit |
| Bus Frequency | 1.7MHz |
| Interfaces | I2C |
| IC Interface Type | I2C |
| Supply Voltage Min | 1.8V |
| Supply Voltage Max | 5.5V |
| IC Case / Package | SSOP |
| Interface Case Style | SSOP |
| No. of Pins | 28Pins |
| No. of I/O's | 16I/O's |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Important Product Warning: | Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts. |
| Country of Origin: | Thailand |
